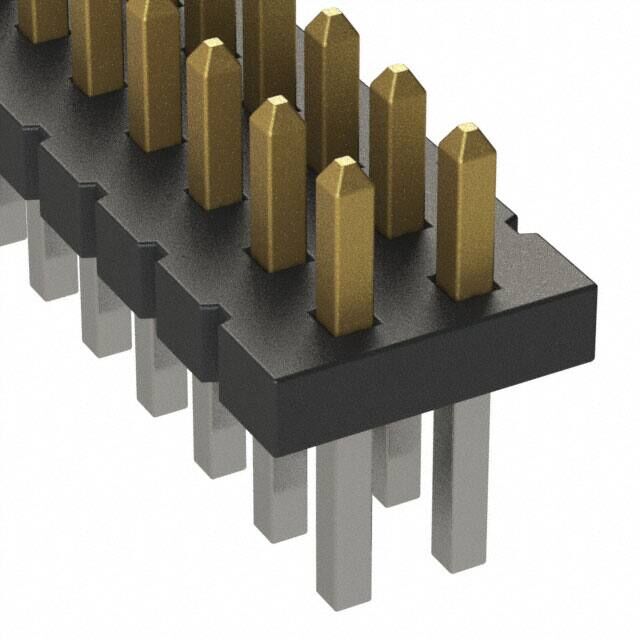

FTS-134-02-L-D

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 68 POS 1.27MM SOLDER ST TOP ENTRY THRU-HOLE TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FTS-134-02-L-D

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 68 POS 1.27MM SOLDER ST TOP ENTRY THRU-HOLE TUBE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTS-134-02-L-D

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating [x]	1.9 mm
Contact Length - Mating [x]	0.075 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.034 in
Insulation Height	0.86 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	68
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.199 in
Overall Contact Length	5.05 mm
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

FTS-134 Series

Part	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Positions	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Material	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Fastening Type	Connector Type	Number of Rows	Contact Type	Insulation Material	Number of Positions Loaded	Termination	Pitch - Mating	Pitch - Mating	Style	Features	Contact Length - Mating [x]	Contact Length - Mating [x]
Samtec Inc. FTS-134-01-L-D-P	UL94 V-0	10 çin	0.25 çm	Through Hole	68	Unshrouded	3.05 mm	0.12 in	Square	0.09 "	2.29 mm	Phosphor Bronze	Black	-55 °C	125 °C	0.05 in	1.27 mm	0.034 in	0.86 mm	Tin	Gold	0.244 in	6.2 mm	Push-Pull	Cuttable Header	2	Male Pin	Liquid Crystal Polymer (LCP)	All	Solder	0.05 in	1.27 mm	Board to Board Cable	Pick and Place
Samtec Inc. FTS-134-01-L-DV-A	UL94 V-0	10 çin	0.25 çm	Surface Mount	68	Unshrouded	3.05 mm	0.12 in	Square			Phosphor Bronze	Black	-55 °C	125 °C	0.05 in	1.27 mm	0.034 in	0.86 mm	Tin	Gold			Push-Pull	Cuttable Header	2	Male Pin	Liquid Crystal Polymer (LCP)	All	Solder	0.05 in	1.27 mm	Board to Board Cable	Board Guide
Samtec Inc. FTS-134-02-L-DV	UL94 V-0	10 çin	0.25 çm	Surface Mount	68	Unshrouded			Square			Phosphor Bronze	Black	-55 °C	125 °C	0.05 in	1.27 mm	0.034 in	0.86 mm	Tin	Gold			Push-Pull	Cuttable Header	2	Male Pin	Liquid Crystal Polymer (LCP)	All	Solder	0.05 in	1.27 mm	Board to Board Cable		1.9 mm	0.075 in
Samtec Inc. FTS-134-02-L-D	UL94 V-0	10 çin	0.25 çm	Through Hole	68	Unshrouded			Square	0.09 "	2.29 mm	Phosphor Bronze	Black	-55 °C	125 °C	0.05 in	1.27 mm	0.034 in	0.86 mm	Tin	Gold	0.199 in	5.05 mm	Push-Pull	Cuttable Header	2	Male Pin	Liquid Crystal Polymer (LCP)	All	Solder	0.05 in	1.27 mm	Board to Board Cable		1.9 mm	0.075 in
Samtec Inc. FTS-134-01-L-D	UL94 V-0	10 çin	0.25 çm	Through Hole	68	Unshrouded	3.05 mm	0.12 in	Square	0.09 "	2.29 mm	Phosphor Bronze	Black	-55 °C	125 °C	0.05 in	1.27 mm	0.034 in	0.86 mm	Tin	Gold	0.244 in	6.2 mm	Push-Pull	Cuttable Header	2	Male Pin	Liquid Crystal Polymer (LCP)	All	Solder	0.05 in	1.27 mm	Board to Board Cable
Samtec Inc. FTS-134-01-L-DV	UL94 V-0	10 çin	0.25 çm	Surface Mount	68	Unshrouded	3.05 mm	0.12 in	Square			Phosphor Bronze	Black	-55 °C	125 °C	0.05 in	1.27 mm	0.034 in	0.86 mm	Tin	Gold			Push-Pull	Cuttable Header	2	Male Pin	Liquid Crystal Polymer (LCP)	All	Solder	0.05 in	1.27 mm	Board to Board Cable
Samtec Inc. FTS-134-02-F-DV	UL94 V-0	3 µin	0.076 µm	Surface Mount	68	Unshrouded			Square			Phosphor Bronze	Black	-55 °C	125 °C	0.05 in	1.27 mm	0.034 in	0.86 mm	Tin	Gold			Push-Pull	Cuttable Header	2	Male Pin	Liquid Crystal Polymer (LCP)	All	Solder	0.05 in	1.27 mm	Board to Board Cable		1.9 mm	0.075 in
Samtec Inc. FTS-134-04-F-D	UL94 V-0	3 µin	0.076 µm	Through Hole	68	Unshrouded	3.81 mm	0.15 in	Square	0.09 "	2.29 mm	Phosphor Bronze	Black	-55 °C	125 °C	0.05 in	1.27 mm	0.034 in	0.86 mm	Tin	Gold	0.274 in	6.96 mm	Push-Pull	Cuttable Header	2	Male Pin	Liquid Crystal Polymer (LCP)	All	Solder	0.05 in	1.27 mm	Board to Board Cable
Samtec Inc. FTS-134-02-L-D-S	UL94 V-0	10 çin	0.25 çm	Through Hole	68	Unshrouded			Square	0.09 "	2.29 mm	Phosphor Bronze	Black	-55 °C	125 °C	0.05 in	1.27 mm	0.034 in	0.86 mm	Tin	Gold	0.199 in	5.05 mm	Push-Pull	Cuttable Header	2	Male Pin	Liquid Crystal Polymer (LCP)	All	Solder	0.05 in	1.27 mm	Board to Board Cable	End Shrouds	1.9 mm	0.075 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 5.99
		10	$ 5.87
		25	$ 5.75
		50	$ 5.63
		100	$ 4.80
Digikey	Tube	13	$ 8.24

Description

General part information

FTS-134 Series

Connector Header Through Hole 68 position 0.050" (1.27mm)
