14180-7SG-300

Active

Conxall/Switchcraft

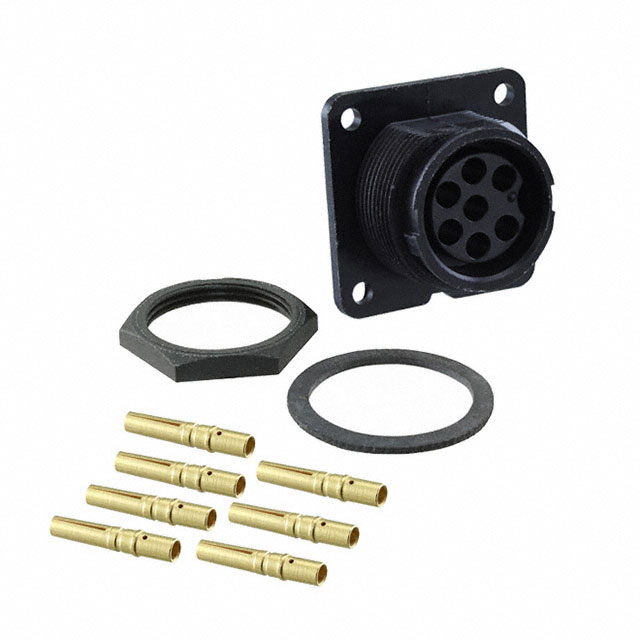

CONN RCPT FMALE 7POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 7POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	14180-7SG-300

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut, Flange
Number of Positions	7
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

CONN RCPT FMALE 7POS GOLD CRIMP

Part	Shielding	Termination	Contact Finish - Mating	Primary Material	Mounting Feature	Connector Type	Ingress Protection	Orientation	Color	Voltage Rating	Fastening Type	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]
Conxall/Switchcraft 14180-7SG-300	Unshielded	Crimp	Gold	Plastic	Bulkhead - Front Side Nut, Flange	Receptacle, Female Sockets	Weathertight	Keyed	Black	600 V	Bayonet Lock	Brass	7	-40 °C	115 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 13.41

General part information

7 Position Circular Connector Receptacle, Female Sockets Crimp
