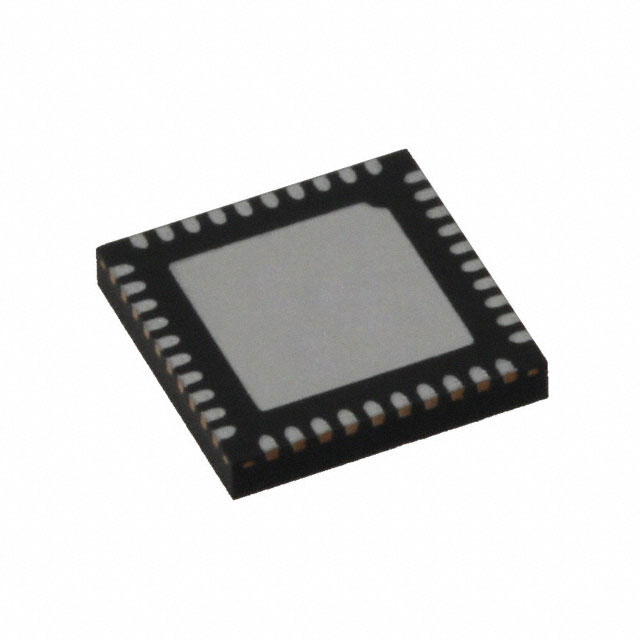

L6756DTR
ObsoleteSTMicroelectronics
IC REG CTRLR VR10 4OUT 40VFQFPN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L6756DTR
ObsoleteSTMicroelectronics
IC REG CTRLR VR10 4OUT 40VFQFPN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L6756DTR |
|---|---|
| Applications | Controller, VR11, VR11.1, Intel VR10 |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-VFQFPN (6x6) |
| Voltage - Input [Max] | 13.2 V |
| Voltage - Input [Min] | 10.8 V |
| Voltage - Output [Max] | 1.6 V |
| Voltage - Output [Min] | 0.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
L6756 Series
- Controller, Intel VR10, VR11, VR11.1 Voltage Regulator IC 4 Output 40-VFQFPN (6x6)
Documents
Technical documentation and resources
