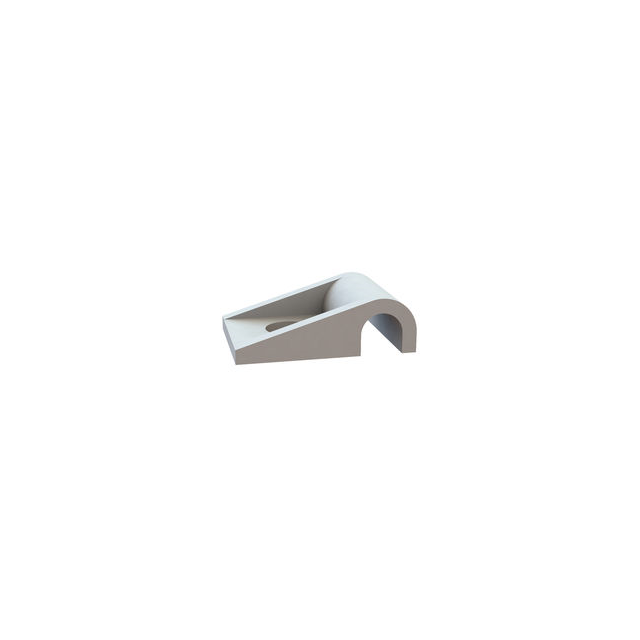

22HDCC4840

Active

Essentra Access Solutions

FASTENER, SCREW MOUNT CABLE CLAMP, 12.7 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 26.5 MM, 12.7 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SCREW MOUNT CABLE CLAMP, 12.7 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 26.5 MM, 12.7 MM

Technical Specifications

Parameters and characteristics for this part

Specification	22HDCC4840

Bundle Center to Mounting Center	0.492 "
Bundle Center to Mounting Center	12.5 mm
Color	Natural
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Opening Size	12.29 mm
Opening Size [z]	0.484 in
Panel Hole Size	5.16 mm
Panel Hole Size	0.203 in
Width	26.52 mm
Width	1.044 in

Part	Panel Hole Size	Panel Hole Size	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Material Flammability Rating	Width	Width	Color	Material	Opening Size [z]	Opening Size	Width [y]	Width [y]	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Opening Size [custom]	Opening Size [custom]	Bundle Center to Mounting Center	Opening Size [z]	Opening Size	Width [x]	Width [x]
Essentra Access Solutions 22HDCC4840	5.16 mm	0.203 in	0.492 "	12.5 mm	UL94 V-2	26.52 mm	1.044 in	Natural	Polyamide (PA66) Nylon 6/6	0.484 in	12.29 mm
Essentra Access Solutions 22HDCC1250	5.16 mm	0.203 in			UL94 V-2			Natural	Polyamide (PA66) Nylon 6/6			17.15 mm	0.675 in	7.8 mm	0.307 in
Essentra Access Solutions 22HDCC3590	5.16 mm	0.203 in		10.92 mm	UL94 V-2			Natural	Polyamide (PA66) Nylon 6/6			23.11 mm	0.91 in			9.12 mm	0.359 in	0.43 in
Essentra Access Solutions 22HDCC4220	5.16 mm	0.203 in	0.46 "	11.68 mm	UL94 V-2			Natural	Polyamide (PA66) Nylon 6/6	0.422 in									10.72 mm
Essentra Access Solutions 22HDCC2340	5.16 mm	0.203 in			UL94 V-2			Natural	Polyamide (PA66) Nylon 6/6		5.94 mm	20.14 mm	0.793 in	9.3 mm	0.366 in					0.234 in
Essentra Access Solutions 22HDCC1720	5.16 mm	0.203 in	0.328 in	8.33 mm	UL94 V-2			Natural	Polyamide (PA66) Nylon 6/6	0.172 in									4.37 mm		18.59 mm	0.732 "
Essentra Access Solutions 22HDCC2970	5.16 mm	0.203 in	0.4 in	10.16 mm	UL94 V-2			Natural	Polyamide (PA66) Nylon 6/6							7.54 mm	0.297 in				21.82 mm	0.859 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.27
Newark	Each	1	$ 0.30
		50000	$ 0.27

General part information

Cable Clip, U-Type Natural 0.484" (12.29mm)
