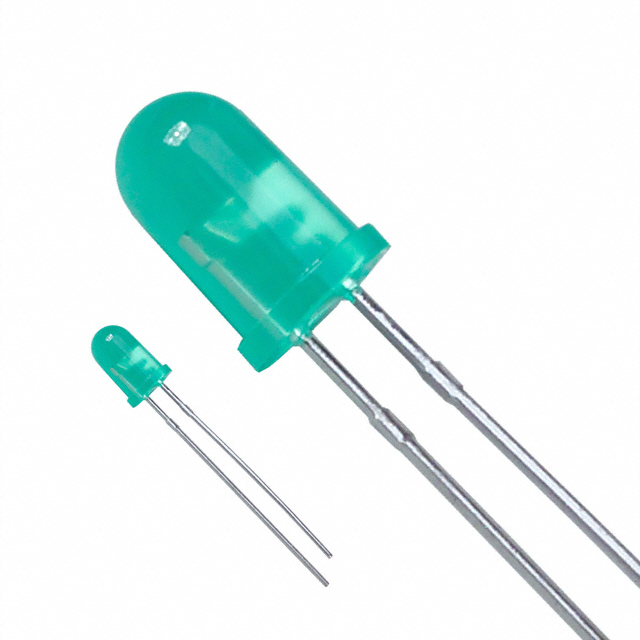

LTL-307G

Active

Diodes Inc

SINGLE COLOR LED, GREEN, DIFFUSED, T-1 3/4, 5MM,

Search across all available documentation for this part.

Active

Diodes Inc

SINGLE COLOR LED, GREEN, DIFFUSED, T-1 3/4, 5MM,

Technical Specifications

Parameters and characteristics for this part

Part	Lens Size	Lens Size	Lens Style	Voltage - Forward (Vf) (Typ)	Package / Case	Supplier Device Package	Color	Wavelength - Peak	Mounting Type	Height (Max) [Max] [z]	Lens Transparency	Lens Color	Viewing Angle	Current - Test	Wavelength - Dominant	Millicandela Rating	Lens Size [diameter]	Configuration
Diodes Inc LTL-307G-012	T-1 3/4	5 mm	Round with Domed Top	2.1 V	Radial	T-1 3/4	Green	565 nm	Through Hole	9.85 mm	Diffused	Green	50 °	20 mA	569 nm	19 mcd
Diodes Inc LTL-307E-012	T-1 3/4	5 mm	Round with Domed Top	2 V	Radial	T-1 3/4	Red	635 nm	Through Hole	9.85 mm	Diffused	Red	50 °	20 mA	623 nm	19 mcd
Diodes Inc LTL-307E-011A	T-1 3/4	5 mm	Round with Domed Top	2 V	Radial	T-1 3/4	Red	635 nm	Through Hole	9.85 mm	Diffused	Red	50 °	20 mA	623 nm	19 mcd
Diodes Inc LTL-307G			Round with Domed Top	2.1 V	Radial	T-1 3/4	Green	565 nm	Through Hole	8.6 mm	Diffused	Green	50 °	20 mA	569 nm	19 mcd	5 mm Dia	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green 569nm LED Indication - Discrete 2.1V Radial
