Technical Specifications
Parameters and characteristics for this part
| Specification | MAXREFDES125# |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 4 A |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Power - Output | 20 W |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MAX17536 |
| Voltage - Input [Max] | 36 V |
| Voltage - Input [Min] | 17 V |
| Voltage - Output | 5.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 23.59 | |
MAXREFDES125 Series
EV KIT PWR SPLY 24V-5.1V 20W
| Part | Regulator Topology | Voltage - Output | Outputs and Type | Outputs and Type | Voltage - Input [Min] | Voltage - Input [Max] | Main Purpose | Current - Output | Utilized IC / Part | Board Type | Supplied Contents | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXREFDES125# | Buck | 5.1 V | Non-Isolated | 1 | 17 V | 36 V | DC/DC, Step Down | 4 A | MAX17536 | Fully Populated | Board(s) | 20 W |
Description
General part information
MAXREFDES125 Series

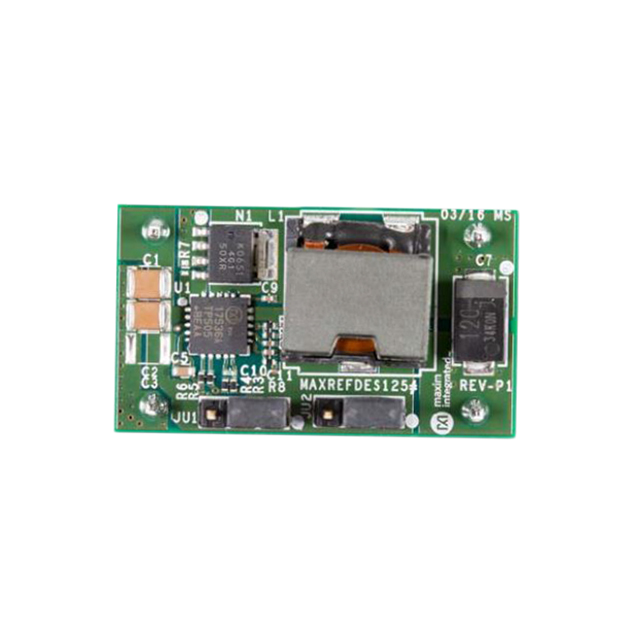

MAX17536 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
