Q-2P04G00051.5M

Active

Amphenol Custom Cable

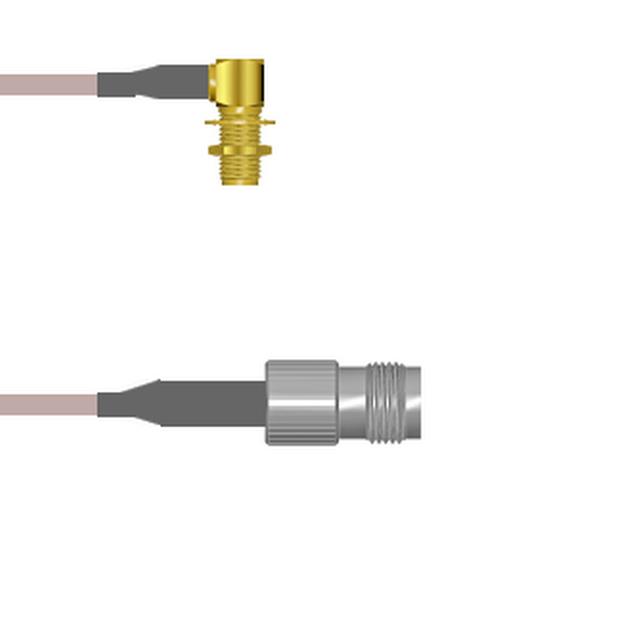

COAX CBL SMA TO TNC 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2P04G00051.5M

Active

Amphenol Custom Cable

COAX CBL SMA TO TNC 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2P04G00051.5M

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	SMA to TNC

Q-2P04G0 Series

Part	Connector Impedance	2nd Contact Gender	1st Connector Mounting Feature	Style	Overall Impedance	Cable Type	Length	Length	Length	Color	2nd Connector Mounting Feature	2nd Connector Mounting Type	1st Connector Mounting Type	Features	Cable Impedance	1st Connector	Frequency - Max [Max]	1st Contact Gender	2nd Connector	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2P04G0005084I	50 Ohms	Female	Bulkhead - Front Side Nut	SMA to TNC	50 Ohms	RG-316	84 in	2.1 m	7 ft	Copper	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	Shielded	50 Ohms	Right Angle SMA Jack	3 GHz	Female	TNC Jack
Amphenol Custom Cable Q-2P04G0003048I	50 Ohms	Female	Bulkhead - Front Side Nut	SMA to TNC	50 Ohms	RG-174	48 in	1200 mm	4 ft	Black	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	Shielded	50 Ohms	Right Angle SMA Jack	1 GHz	Female	TNC Jack
Amphenol Custom Cable Q-2P04G0005.75M	50 Ohms	Female	Bulkhead - Front Side Nut	SMA to TNC	50 Ohms	RG-316	29.53 "	750 mm		Copper	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	Shielded	50 Ohms	Right Angle SMA Jack	3 GHz	Female	TNC Jack
Amphenol Custom Cable Q-2P04G0003084I	50 Ohms	Female	Bulkhead - Front Side Nut	SMA to TNC	50 Ohms	RG-174	84 in	2.1 m	7 ft	Black	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	Shielded	50 Ohms	Right Angle SMA Jack	1 GHz	Female	TNC Jack
Amphenol Custom Cable Q-2P04G0005003M	50 Ohms	Female	Bulkhead - Front Side Nut	SMA to TNC	50 Ohms	RG-316	118.1 in	3 m	9.8 '	Copper	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	Shielded	50 Ohms	Right Angle SMA Jack	3 GHz	Female	TNC Jack
Amphenol Custom Cable Q-2P04G00051.5M	50 Ohms	Female	Bulkhead - Front Side Nut	SMA to TNC	50 Ohms	RG-316	59.1 in	1.5 m	4.9 ft	Copper	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	Shielded	50 Ohms	Right Angle SMA Jack	3 GHz	Female	TNC Jack
Amphenol Custom Cable Q-2P04G0005.25M	50 Ohms	Female	Bulkhead - Front Side Nut	SMA to TNC	50 Ohms	RG-316				Copper	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	Shielded	50 Ohms	Right Angle SMA Jack	3 GHz	Female	TNC Jack	9.843 "	250 mm
Amphenol Custom Cable Q-2P04G0005024I	50 Ohms	Female	Bulkhead - Front Side Nut	SMA to TNC	50 Ohms	RG-316	24 "	609.6 mm		Copper	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	Shielded	50 Ohms	Right Angle SMA Jack	3 GHz	Female	TNC Jack
Amphenol Custom Cable Q-2P04G00052.5M	50 Ohms	Female	Bulkhead - Front Side Nut	SMA to TNC	50 Ohms	RG-316	98.4 in	2.5 m	8.2 '	Copper	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	Shielded	50 Ohms	Right Angle SMA Jack	3 GHz	Female	TNC Jack
Amphenol Custom Cable Q-2P04G0005018I	50 Ohms	Female	Bulkhead - Front Side Nut	SMA to TNC	50 Ohms	RG-316				Copper	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	Shielded	50 Ohms	Right Angle SMA Jack	3 GHz	Female	TNC Jack		457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 121.41
		25	$ 119.04
		50	$ 116.67
		100	$ 114.30
		250	$ 111.92

Description

General part information

Q-2P04G0 Series

Cable Assembly Coaxial SMA to TNC RG-316 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
