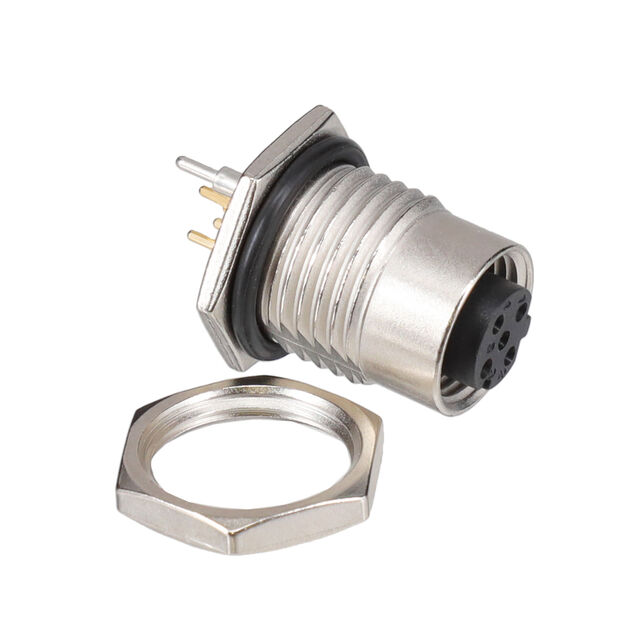

MSDS-04PFFP-SF8002

Active

Amphenol LTW

M SERIES, M12, 4A, 04 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, M12, 4A, 04 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	MSDS-04PFFP-SF8002

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	D
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-4
Shielding	Shielded
Termination	Solder
Voltage Rating	250 VDC

Part	Number of Positions	Mounting Type	Shell Size - Insert	Color	Current Rating (Amps)	Connector Type	Voltage Rating	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Contact Material	Insert Material	Termination	Ingress Protection	Contact Finish - Mating	Primary Material	Shielding	Orientation	Shell Finish
Amphenol LTW MSDS-04PFFP-SF8002	4	Panel Mount Through Hole	M12-4	Silver	4 A	Female Sockets Plug	250 VDC	Zinc Alloy	-40 °C	105 ░C	Bulkhead - Front Side Nut	Copper Alloy	Polyamide (PA) Nylon Glass Filled	Solder	IP68 IP69K	Gold	Metal	Shielded	D	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Solder
