7711A B59500

Active

Belden Inc.

4 #18 PE SH PVC FRTPE

Search across all available documentation for this part.

Active

Belden Inc.

4 #18 PE SH PVC FRTPE

Technical Specifications

Parameters and characteristics for this part

Specification	7711A B59500

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	22.86 mm
Jacket (Insulation) Diameter [diameter]	0.9 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style CMR
Shield Coverage	95 %, 100 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
Usage	Video
Voltage	300 V
Wire Gauge	18 AWG

Part	Shield Material	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Length [x]	Length [x]	Voltage	Shield Type	Number of Conductors	Conductor Material	Wire Gauge	Cable Type	Conductor Strand	Conductor Insulation	Ratings	Usage	Jacket Color
Belden Inc. 7711A B59500	Aluminum Polyester Copper Tinned	95 % 100 %	-40 °C	75 ░C	22.86 mm	0.9 "	Poly-Vinyl Chloride (PVC) Riser	500 '	152.4 m	300 V	Braid Foil	4	Copper Bare	18 AWG	Multi-Conductor	Solid	Polyethylene (PE)	UL Style CMR	Video	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

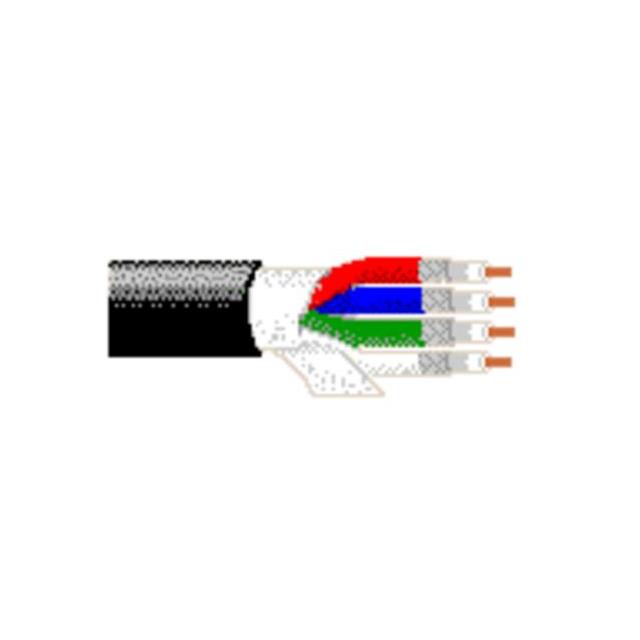

4 (Coax) Conductor Multi-Conductor Cable Black 18 AWG Foil, Braid 500.0' (152.4m)
