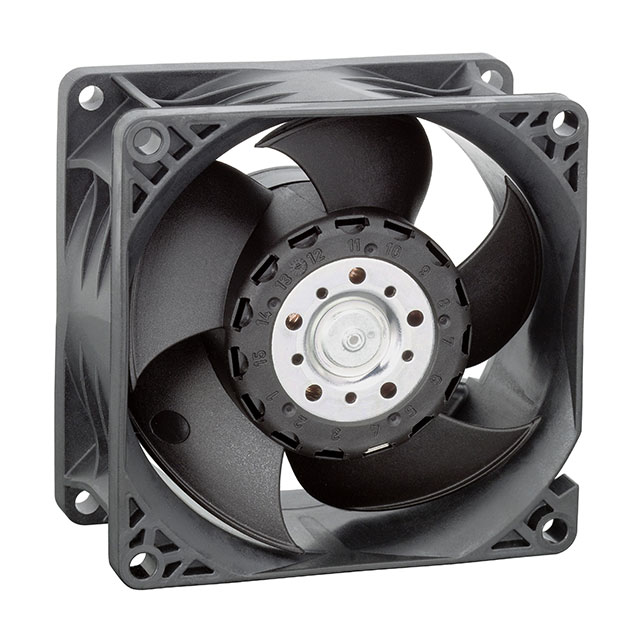

Specification	8214J/2H4P

Air Flow	129.4 CFM
Approval Agency	CSA, UL, CE, VDE
Bearing Type	Ball
Current Rating	0.015 A
Fan Type	Tubeaxial
Features	PWM Control, Speed Sensor (Tach)
Lifetime	50000 Hrs
Noise	71 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	37 W
RPM	14000 RPM
Size / Dimension Height	80 mm
Size / Dimension Length	80 mm
Size / Dimension Shape	Square
Static Pressure	2.85 in H2O
Termination	4 Wire Leads
Termination Leads Count	4 leads
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Voltage Range (Max)	27.6 VDC
Voltage Range (Min)	12 V

8214J Series

Part	Weight	Termination Leads Count	Termination Type	Termination	Power (Watts)	Operating Temperature (Min)	Operating Temperature (Max)	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Bearing Type	Fan Type	Voltage - Rated	Width	RPM	Approval Agency	Noise	Air Flow	Material - Frame	Voltage Range (Min)	Voltage Range (Max)	Lifetime	Material - Blade	Features	Static Pressure	Current Rating
ebm-papst Inc. 8214JN	0.353 lb	2 leads	Wire Leads	2 Wire Leads	10 W	-4 °F	158 °F	80 mm	Square	80 mm	Ball	Tubeaxial	24 VAC	38 mm	8400 RPM	CE	55 dB	78 CFM	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	18 VDC	26.4 VDC	62500 Hrs	Fiberglass Reinforced Nylon PA Polyamide
ebm-papst Inc. 8214J/2H4	0.44 lb	3	Wire Leads	3 Wire Leads	38 W	14 °F	140 °F	80 mm	Square	80 mm	Ball	Tubeaxial	24 VAC	38 mm			71 dB	131 CFM	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	12 V	27.6 VDC		Fiberglass Reinforced Nylon PA Polyamide	Speed Sensor (Tach)
ebm-papst Inc. 8214J/2H4P		4 leads	Wire Leads	4 Wire Leads	37 W	-4 °F	158 °F	80 mm	Square	80 mm	Ball	Tubeaxial	24 VAC		14000 RPM	CE CSA UL VDE	71 dB	129.4 CFM		12 V	27.6 VDC	50000 Hrs		PWM Control Speed Sensor (Tach)	2.85 in H2O	0.015 A
ebm-papst Inc. 8214J/2N		3	Wire Leads	3 Wire Leads	10 W	-4 °F	158 °F	80 mm	Square	80 mm	Ball	Tubeaxial	24 VAC	38 mm	8400 RPM		55 dB	78 CFM	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	18 VDC	26.4 VDC	62500 Hrs	Fiberglass Reinforced Nylon PA Polyamide	Locked Rotor Protection Speed Sensor (Tach)
ebm-papst Inc. 8214JH3	0.353 lb	2 leads	Wire Leads	2 Wire Leads	26 W	-4 °F	158 °F	80 mm	Square	80 mm	Ball	Tubeaxial	24 VAC	38 mm	12000 RPM		66 dB	112 CFM	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	12 V	27.6 VDC	55000 Hrs	Fiberglass Reinforced Nylon PA Polyamide
