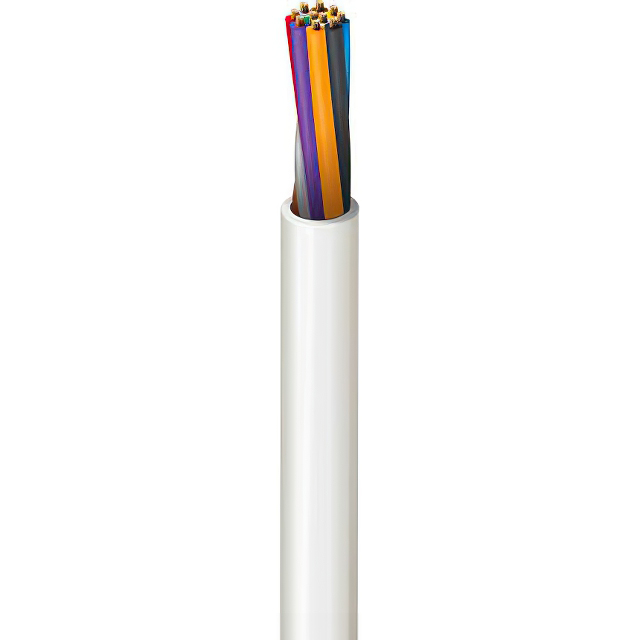

5308UE 008500

Active

Belden Inc.

CABLE 10COND 18AWG GRAY 500'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 10COND 18AWG GRAY 500'

Technical Specifications

Parameters and characteristics for this part

Specification	5308UE 008500

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.272 in
Jacket (Insulation) Diameter [diameter]	6.91 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.457 mm
Jacket (Insulation) Thickness	0.018 in
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	10
Ratings	UL Style CMR
Usage	Sound, Security
Voltage	300 V
Wire Gauge	18 AWG

Part	Features	Conductor Material	Ratings	Length [x]	Length [x]	Voltage	Wire Gauge	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Jacket Color	Usage
Belden Inc. 5308UE 008500	Rip Cord	Copper Bare	UL Style CMR	500 '	152.4 m	300 V	18 AWG	10	0.272 in	6.91 mm	26 AWG	7	Multi-Conductor	Polypropylene (PP)	0.457 mm	0.018 in	Poly-Vinyl Chloride (PVC) Riser	Gray	Security Sound

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Conductor Multi-Conductor Cable Gray 18 AWG 500.0' (152.4m)
