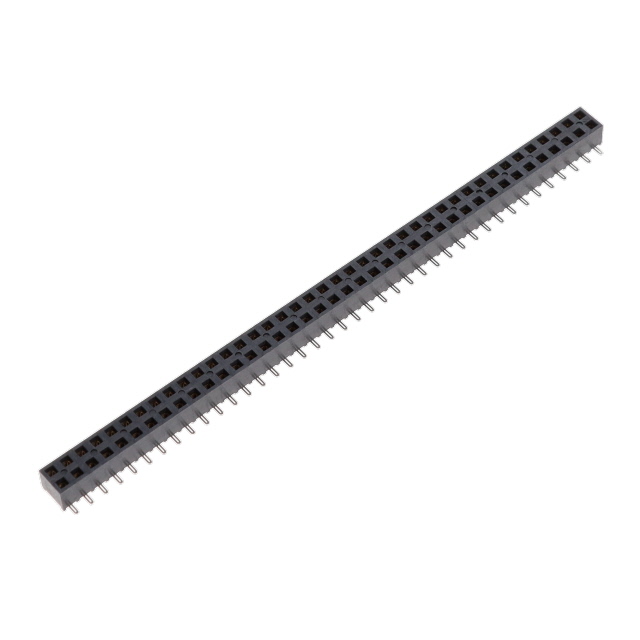

SMM-140-02-F-D

Active

Samtec Inc.

CONN RCPT 80POS 0.079 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSMM Series Other Related Documents 01 Datasheet

SMM-140-02-F-D

Active

Samtec Inc.

CONN RCPT 80POS 0.079 GOLD SMD

Deep-Dive with AI

DocumentsSMM Series Other Related Documents 01 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMM-140-02-F-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	350 VAC

SMM-140 Series

Part	Voltage Rating	Connector Type	Number of Positions	Contact Finish - Mating	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Fastening Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Material Flammability Rating	Current Rating (Amps)	Insulation Height	Insulation Height	Insulation Color	Number of Rows	Contact Finish - Post	Contact Material	Number of Positions Loaded	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Features	Row Spacing - Mating	Row Spacing - Mating
Samtec Inc. SMM-140-02-L-S	350 VAC	Receptacle	40	Gold	Board to Board Cable	10 çin	0.25 çm	Surface Mount	Push-Pull	Female Socket	-55 °C	125 °C	Square	UL94 V-0	3.2 A	3.56 mm	0.14 in	Black	1	Tin	Beryllium Copper	All	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Solder
Samtec Inc. SMM-140-01-H-S	350 VAC	Receptacle	40	Gold	Board to Board Cable	30 Áin	0.76 Ám	Through Hole	Push-Pull	Female Socket	-55 °C	125 °C	Square	UL94 V-0	3.2 A	3.56 mm	0.14 in	Black	1	Gold	Beryllium Copper	All	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Solder	3 µin	0.076 µm	0.12 in	3.05 mm
Samtec Inc. SMM-140-01-S-S-P	350 VAC	Receptacle	40	Gold	Board to Board Cable	30 Áin	0.76 Ám	Through Hole	Push-Pull	Female Socket	-55 °C	125 °C	Square	UL94 V-0	3.2 A	3.56 mm	0.14 in	Black	1	Tin	Beryllium Copper	All	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Solder			0.12 in	3.05 mm	Pick and Place
Samtec Inc. SMM-140-02-L-D	350 VAC	Receptacle	80	Gold	Board to Board Cable	10 çin	0.25 çm	Surface Mount	Push-Pull	Female Socket	-55 °C	125 °C	Square	UL94 V-0	3.2 A	3.56 mm	0.14 in	Black	2	Tin	Beryllium Copper	All	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Solder						0.079 in	2 mm
Samtec Inc. SMM-140-02-H-D-LC	350 VAC	Receptacle	80	Gold	Board to Board Cable	30 Áin	0.76 Ám	Surface Mount	Push-Pull	Female Socket	-55 °C	125 °C	Square	UL94 V-0	3.2 A	3.56 mm	0.14 in	Black	2	Gold	Beryllium Copper	All	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Solder	3 µin	0.076 µm				0.079 in	2 mm
Samtec Inc. SMM-140-02-L-D-LC	350 VAC	Receptacle	80	Gold	Board to Board Cable	10 çin	0.25 çm	Surface Mount	Push-Pull	Female Socket	-55 °C	125 °C	Square	UL94 V-0	3.2 A	3.56 mm	0.14 in	Black	2	Tin	Beryllium Copper	All	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Solder						0.079 in	2 mm
Samtec Inc. SMM-140-02-F-S	350 VAC	Receptacle	40	Gold	Board to Board Cable	3 µin	0.076 µm	Surface Mount	Push-Pull	Female Socket	-55 °C	125 °C	Square	UL94 V-0	3.2 A	3.56 mm	0.14 in	Black	1	Tin	Beryllium Copper	All	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Solder
Samtec Inc. SMM-140-02-S-D-LC-P	350 VAC	Receptacle	80	Gold	Board to Board Cable	30 Áin	0.76 Ám	Surface Mount	Push-Pull	Female Socket	-55 °C	125 °C	Square	UL94 V-0	3.2 A	3.56 mm	0.14 in	Black	2	Tin	Beryllium Copper	All	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Solder					Board Lock Pick and Place	0.079 in	2 mm
Samtec Inc. SMM-140-02-F-D	350 VAC	Receptacle	80	Gold	Board to Board Cable	3 µin	0.076 µm	Surface Mount	Push-Pull	Female Socket	-55 °C	125 °C	Square	UL94 V-0	3.2 A	3.56 mm	0.14 in	Black	2	Tin	Beryllium Copper	All	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Solder						0.079 in	2 mm
Samtec Inc. SMM-140-02-S-D-P	350 VAC	Receptacle	80	Gold	Board to Board Cable	30 Áin	0.76 Ám	Surface Mount	Push-Pull	Female Socket	-55 °C	125 °C	Square	UL94 V-0	3.2 A	3.56 mm	0.14 in	Black	2	Tin	Beryllium Copper	All	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Solder					Pick and Place	0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 12.68
		10	$ 12.00
		25	$ 11.55
		50	$ 11.27
		100	$ 10.50
