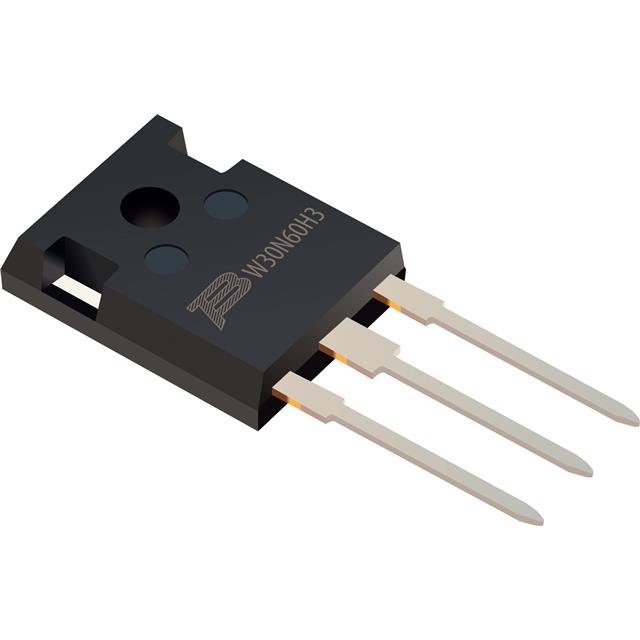

BIDNW30N60H3

Active

Bourns Inc.

IGBT TRENCH FS 600V 60A TO247NL

Search across all available documentation for this part.

Active

Bourns Inc.

IGBT TRENCH FS 600V 60A TO247NL

Technical Specifications

Parameters and characteristics for this part

Specification	BIDNW30N60H3

Current - Collector (Ic) (Max) [Max]	60 A
Current - Collector Pulsed (Icm)	120 A
Gate Charge	76 nC
IGBT Type	Trench Field Stop
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-247-3
Power - Max [Max]	230 W
Reverse Recovery Time (trr)	28 ns
Supplier Device Package	TO-247N-3L
Switching Energy	0.45 mJ, 1.85 mJ
Td (on/off) @ 25°C	67 ns, 30 ns
Test Condition	15 V, 400 V, 30 A, 10 Ohm
Vce(on) (Max) @ Vge, Ic	2 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

Part	Switching Energy	Mounting Type	Test Condition	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Td (on/off) @ 25°C	Supplier Device Package	Vce(on) (Max) @ Vge, Ic	IGBT Type	Current - Collector Pulsed (Icm)	Reverse Recovery Time (trr)	Current - Collector (Ic) (Max) [Max]	Gate Charge
Bourns Inc. BIDNW30N60H3	0.45 mJ 1.85 mJ	Through Hole	10 Ohm 15 V 30 A 400 V	230 W	600 V	-55 °C	150 °C	TO-247-3	30 ns 67 ns	TO-247N-3L	2 V	Trench Field Stop	120 A	28 ns	60 A	76 nC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT Trench Field Stop 600 V 60 A 230 W Through Hole TO-247N-3L
