ISRA-0249-D104

Active

SCHURTER Inc.

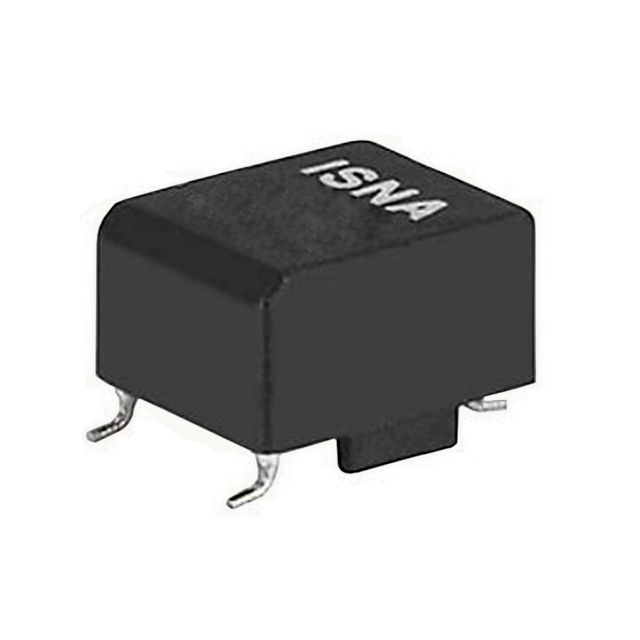

ISRA PULSE TRANSFORMER SMD 0.1A

Search across all available documentation for this part.

Active

SCHURTER Inc.

ISRA PULSE TRANSFORMER SMD 0.1A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.5mH SCR and Triac Trigger (Encapsulated) Pulse Transformer 1:1 Surface Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	ISRA-0249-D104	ISRA Series

ET (Volt-Time)	300 VµS	300 - 400 VµS
Height - Seated (Max)	-	14 mm
Height - Seated (Max)	-	0.551 "
Height - Seated (Max) [Max] [z]	0.532 "	0.433 - 0.532 in
Height - Seated (Max) [Max] [z]	13.5 mm	11 - 13.5 mm
Inductance	3.5 mH	2.2 - 3.5 mH
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Size / Dimension	-	0.512 - 0.878 in
Size / Dimension	-	0.598 - 0.894 in
Size / Dimension [x]	0.701 in, 17.8 mm	0.701 - 22.3 mm
Size / Dimension [y]	18.2 mm, 0.717 in	0.717 - 22.7 mm
Transformer Type	SCR and Triac Trigger (Encapsulated)	Isolation and Data Interface (Encapsulated), SCR and Triac Trigger (Encapsulated)
Turns Ratio - Primary:Secondary	1:1	1:1
Weight	9.12 g	7.98 - 9.97 g
Weight	0.32 oz	0.28 - 0.352 oz

ISRA PULSE TRANSFORMER SMD 0.1A

Part	Weight	Weight	Transformer Type	Operating Temperature [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Turns Ratio - Primary:Secondary	Inductance	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ET (Volt-Time)	Height - Seated (Max)	Height - Seated (Max) [Max]
SCHURTER Inc. ISRA-0235-D103	0.28 oz	7.98 g	Isolation and Data Interface (Encapsulated)	-25 °C, 100 °C	13 mm	15.2 mm	0.512 in	0.598 in	1:1	2.8 mH	Surface Mount	11 mm	0.433 in
SCHURTER Inc. ISRA-0249-D104	0.32 oz	9.12 g	SCR and Triac Trigger (Encapsulated)	-25 °C, 100 °C	0.701 in, 17.8 mm	0.717 in, 18.2 mm			1:1	3.5 mH	Surface Mount	13.5 mm	0.532 "	300 VµS
SCHURTER Inc. ISRA-0239-D502	0.352 oz	9.97 g	SCR and Triac Trigger (Encapsulated)	-25 °C, 100 °C	22.3 mm	22.7 mm	0.878 in	0.894 in	1:1	2.2 mH	Surface Mount			400 VµS	14 mm	0.551 "
