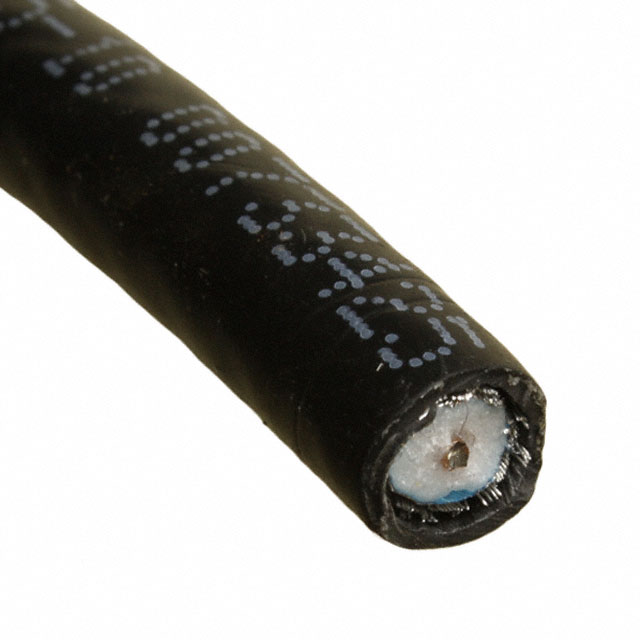

Specification	C5785.38.01

Cable Group	RG-6
Cable Type	Coaxial
Conductor Material	Copper Coated, Steel
Conductor Strand	Solid
Dielectric Diameter	0.177 in
Dielectric Material	Solid Polyethylene (PE)
Features	Quad Shield
Impedance	75 Ohm
Jacket (Insulation) Diameter	0.292 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	500 ft
Shield Coverage	100%, 40%, 60%
Shield Material	Aluminum, Flexfoil®
Shield Type	Braid, Foil
Usage	CATV
Velocity of Propagation (VoP)	85 %
Wire Gauge	18 AWG
Wire Gauge (Cross-Sectional Area)	0.82 mm²

C5785 Series

Part	Cable Group	Usage	Jacket (Insulation) Diameter	Conductor Strand	Jacket (Insulation) Material	Length	Shield Type	Cable Type	Jacket Color	Wire Gauge (Cross-Sectional Area)	Wire Gauge	Impedance	Features	Dielectric Material	Shield Material	Conductor Material	Shield Coverage	Velocity of Propagation (VoP)	Dielectric Diameter
Prysmian Group C5785.18.01	RG-6	CATV	0.292 in	Solid	Poly-Vinyl Chloride (PVC)	500 ft	Braid Foil	Coaxial	Black	0.82 mm²	18 AWG	75 Ohm	Quad Shield
Prysmian Group C5785.27.02	RG-6	CATV	0.292 in	Solid	Poly-Vinyl Chloride (PVC)	500 ft	Braid Foil	Coaxial	White	0.82 mm²	18 AWG	75 Ohm	Quad Shield
Prysmian Group C5785.31.01	RG-6	CATV	0.292 in	Solid	Poly-Vinyl Chloride (PVC)	1000 ft	Braid Foil	Coaxial	Black	0.82 mm²	18 AWG	75 Ohm	Quad Shield
Prysmian Group C5785.41.01	RG-6	CATV	0.292 in	Solid	Poly-Vinyl Chloride (PVC)	1000 ft	Braid Foil	Coaxial	Black	0.82 mm²	18 AWG	75 Ohm	Quad Shield
Prysmian Group C5785.38.01	RG-6	CATV	0.292 in	Solid	Poly-Vinyl Chloride (PVC)	500 ft	Braid Foil	Coaxial	Black	0.82 mm²	18 AWG	75 Ohm	Quad Shield	Solid Polyethylene (PE)	Aluminum Flexfoil®	Copper Coated Steel	100% 40% 60%	85 %	0.177 in
Prysmian Group C5785.31.01	RG-6	CATV	0.292 in	Solid	Poly-Vinyl Chloride (PVC)	1000 ft	Braid Foil	Coaxial	Black	0.82 mm²	18 AWG	75 Ohm	Quad Shield	Solid Polyethylene (PE)	Aluminum Flexfoil®	Copper Coated Steel	100% 40% 60%	85 %	0.177 in
Prysmian Group C5785.46.01	RG-6	CATV	0.292 in	Solid	Poly-Vinyl Chloride (PVC)	5000 ft	Braid Foil	Coaxial	Black	0.82 mm²	18 AWG	75 Ohm	Quad Shield	Solid Polyethylene (PE)	Aluminum Flexfoil®	Copper Coated Steel	100% 40% 60%	85 %	0.177 in
Prysmian Group C5785.41.01	RG-6	CATV	0.292 in	Solid	Poly-Vinyl Chloride (PVC)	1000 ft	Braid Foil	Coaxial	Black	0.82 mm²	18 AWG	75 Ohm	Quad Shield	Solid Polyethylene (PE)	Aluminum Flexfoil®	Copper Coated Steel	100% 40% 60%	85 %	0.177 in
Prysmian Group C5785.46.01	RG-6	CATV	0.292 in	Solid	Poly-Vinyl Chloride (PVC)	5000 ft	Braid Foil	Coaxial	Black	0.82 mm²	18 AWG	75 Ohm	Quad Shield
Prysmian Group C5785.27.02	RG-6	CATV	0.292 in	Solid	Poly-Vinyl Chloride (PVC)	500 ft	Braid Foil	Coaxial	White	0.82 mm²	18 AWG	75 Ohm	Quad Shield	Solid Polyethylene (PE)	Aluminum Flexfoil®	Copper Coated Steel	100% 40% 60%	85 %	0.177 in
