169409

Obsolete

TE Application Tooling

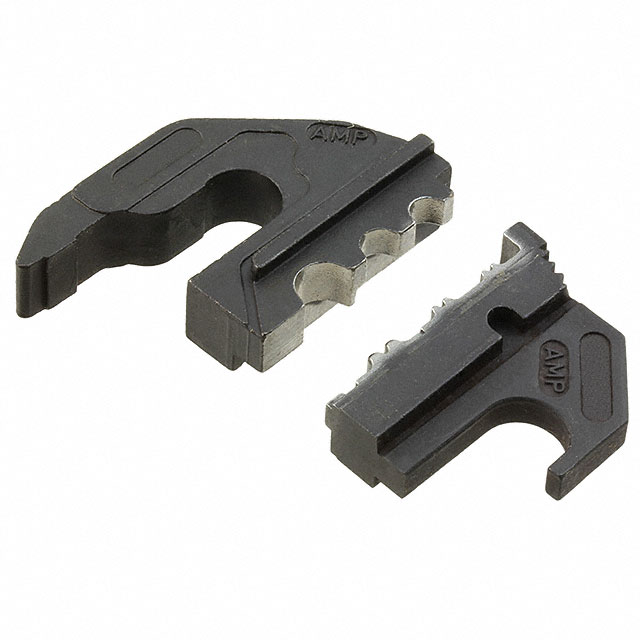

CERTI-LOK DIE

Search across all available documentation for this part.

Obsolete

TE Application Tooling

CERTI-LOK DIE

Technical Specifications

Parameters and characteristics for this part

Specification	169409

For Use With/Related Products	Splices and Terminals
For Use With/Related Products [Max]	22 AWG
For Use With/Related Products [Min]	10 AWG
Tool Type	Die Set

Part	Tool Type	For Use With/Related Products [Max]	For Use With/Related Products [Min]	For Use With/Related Products	Wire Entry Location	Tool Type Feature	Ratcheting
TE Application Tooling 169410
TE Application Tooling 169409	Die Set	22 AWG	10 AWG	Splices and Terminals
TE Application Tooling 169400	Hand Crimper			Varies by Die Set	Side Entry	Without Die Set	Ratchet

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tool Die Set For Splices and Terminals, 10-22 AWG
