5182-2SG-315

Active

Conxall/Switchcraft

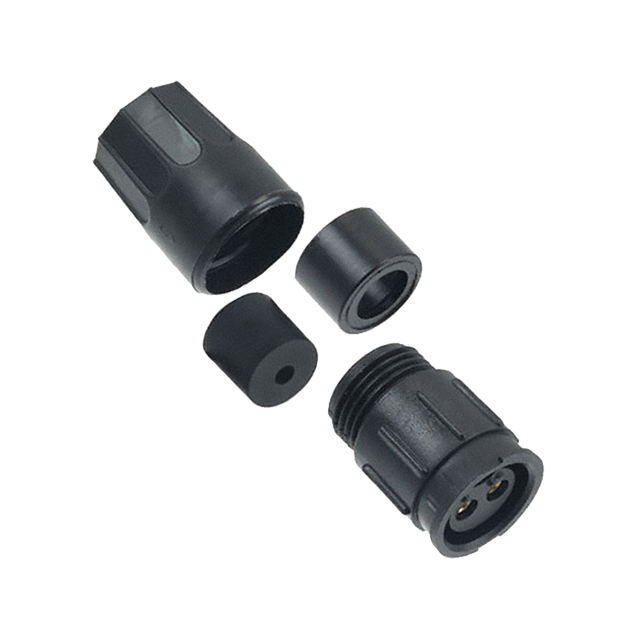

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5182-2SG-315

Active

Conxall/Switchcraft

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5182-2SG-315	5182-2SG Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	5.33 - 7.62 mm
Cable Opening	-	0.23 - 0.32 in
Cable Opening	-	8.13 mm
Cable Opening	-	0.21 - 0.3 in
Cable Opening	-	5.84 - 7.37 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening [custom]	0.17 in, 0.15 in	0.15 - 0.17 in
Cable Opening [custom]	3.81 mm, 4.32 mm	3.81 - 4.32 mm
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Cable Clamp, Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

5182-2SG Series

CONN RCPT FMALE 2P GOLD SLDR CUP

Part	Connector Type	Features	Fastening Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Backshell Material, Plating	Contact Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Ingress Protection	Orientation	Color	Number of Positions	Primary Material	Voltage Rating	Contact Finish - Mating	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 5182-2SG-530	Receptacle, Female Sockets	Backshell, Cable Clamp	Bayonet Lock	7.62 mm	0.32 in	8.13 mm	0.3 in	Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	-40 °C	115 °C	Unshielded	Weathertight	Keyed	Black	2	Plastic	600 V	Gold
Conxall/Switchcraft 5182-2SG-528	Receptacle, Female Sockets	Backshell, Cable Clamp	Bayonet Lock	7.11 mm	0.29 in		0.28 in	Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	-40 °C	115 °C	Unshielded	Weathertight	Keyed	Black	2	Plastic	600 V	Gold	7.37 mm
Conxall/Switchcraft 5182-2SG-518	Receptacle, Female Sockets	Backshell, Cable Clamp	Bayonet Lock					Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	-40 °C	115 °C	Unshielded	Weathertight	Keyed	Black	2	Plastic	600 V	Gold		4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 5182-2SG-524	Receptacle, Female Sockets	Backshell, Cable Clamp	Bayonet Lock	6.1 mm	0.27 in		0.24 in	Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	-40 °C	115 °C	Unshielded	Weathertight	Keyed	Black	2	Plastic	600 V	Gold	6.86 mm
Conxall/Switchcraft 5182-2SG-515	Receptacle, Female Sockets	Backshell, Cable Clamp	Bayonet Lock					Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	-40 °C	115 °C	Unshielded	Weathertight	Keyed	Black	2	Plastic	600 V	Gold						0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 5182-2SG-3DC	Receptacle, Female Sockets	Backshell	Bayonet Lock					Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	-40 °C	115 °C	Unshielded	Weathertight	Keyed	Black	2	Plastic	600 V	Gold
Conxall/Switchcraft 5182-2SG-521	Receptacle, Female Sockets	Backshell, Cable Clamp	Bayonet Lock	5.33 mm	0.23 in		0.21 in	Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	-40 °C	115 °C	Unshielded	Weathertight	Keyed	Black	2	Plastic	600 V	Gold	5.84 mm
Conxall/Switchcraft 5182-2SG-328	Receptacle, Female Sockets	Backshell	Bayonet Lock	7.11 mm	0.29 in		0.28 in	Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	-40 °C	115 °C	Unshielded	Weathertight	Keyed	Black	2	Plastic	600 V	Gold	7.37 mm
Conxall/Switchcraft 5182-2SG-315	Receptacle, Female Sockets	Backshell	Bayonet Lock					Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	-40 °C	115 °C	Unshielded	Weathertight	Keyed	Black	2	Plastic	600 V	Gold						0.15 in, 0.17 in	3.81 mm, 4.32 mm
