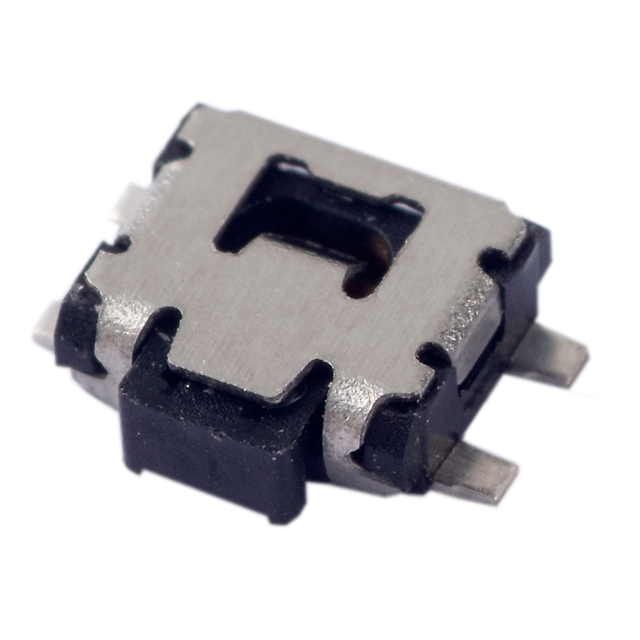

226EM1SAAR
ActiveCTS Electrocomponents
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
226EM1SAAR
ActiveCTS Electrocomponents
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 226EM1SAAR | 226EM1 Series |
|---|---|---|
| Actuator Length, Right Angle | 3.55 mm | 3.55 mm |
| Actuator Orientation | Side Actuated | Side Actuated |
| Actuator Type | Rectangular Button | Rectangular Button |
| Circuit | SPST-NO | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC | 0.05 - 12 A |
| Features | Tactile Feedback | Tactile Feedback |
| Illumination | Non-Illuminated | Non-Illuminated |
| Mechanical Life | 100000 Cycles | 100000 Cycles |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Operating Force | - | 220 gf |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outline [x] | 4.7 mm | 4.7 mm |
| Outline [y] | 2.9 mm | 2.9 mm |
| Switch Function | Off-Mom | Off-Mom |
| Switch Travel | 0.2 mm | 0.2 mm |
| Termination Style | Gull Wing | Gull Wing |
226EM1 Series
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Termination Style | Features | Mechanical Life | Operating Force | Mounting Type | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating @ Voltage | Outline [x] | Outline [y] | Actuator Orientation | Actuator Type | Illumination | Switch Travel | Actuator Length, Right Angle | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CTS Electrocomponents 226EM1SABR | Gull Wing | Tactile Feedback | 100000 Cycles | 220 gf | Surface Mount, Right Angle | Off-Mom | 85 °C | -40 °C | 0.05 A, 12 VDC | 4.7 mm | 2.9 mm | Side Actuated | Rectangular Button | Non-Illuminated | 0.2 mm | 3.55 mm | SPST-NO |
CTS Electrocomponents 226EM1SAAR | Gull Wing | Tactile Feedback | 100000 Cycles | Surface Mount, Right Angle | Off-Mom | 85 °C | -40 °C | 0.05 A, 12 VDC | 4.7 mm | 2.9 mm | Side Actuated | Rectangular Button | Non-Illuminated | 0.2 mm | 3.55 mm | SPST-NO |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10500 | $ 0.16 | |
Description
General part information
226EM1 Series
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
