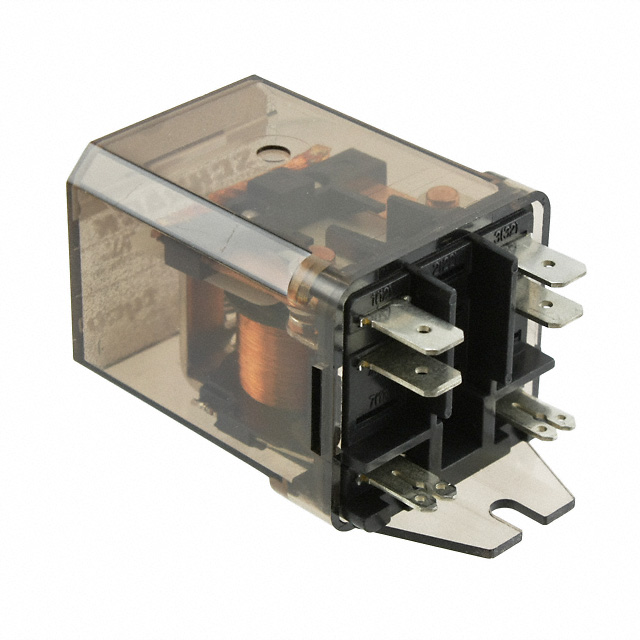

RMD35048
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 30A 48V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RMD35048 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Insulation | Class B |
| Coil Resistance | 2 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 48 VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 30 A |
| Features | Test Button |
| Load - Max Switching | 13200 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 36 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -45 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage | 440 VAC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RMD350 Series
General Purpose Relay SPST-NO (DM) (1 Form X) 48VDC Coil Chassis Mount
