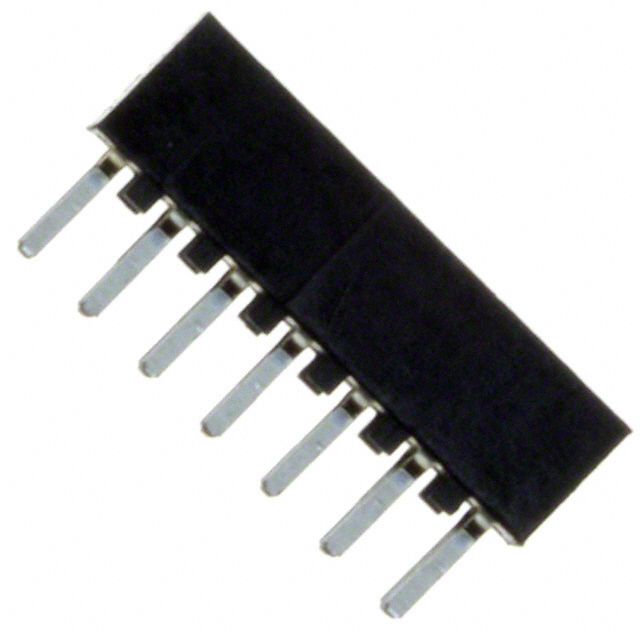

CONN SOCKET STRIP SKT 14 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150214-6002-RB

Active

CONN SOCKET STRIP SKT 14 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE BOX

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150214-6002-RB	150214 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	2.54 mm	2.54 mm
Contact Length - Post	0.1 in	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	-	Board Guide
Insulation Color	Black	Black
Insulation Height	0.177 in	0.177 - 0.179 "
Insulation Height	4.5 mm	4.5 - 4.55 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Positions	14	14
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150214 Series

CONN RCPT 14P 0.079 GOLD PCB R/A

Part	Insulation Color	Fastening Type	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Connector Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish - Mating	Termination	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Type	Number of Rows	Number of Positions	Number of Positions Loaded	Insulation Height	Insulation Height
3M 150214-5022-TB	Black	Push-Pull	Tin-Lead	0.079 in	2 mm	0.079 in	2 mm	Through Hole, Right Angle	Receptacle	2.54 mm	0.1 in	UL94 V-0	Gold	Solder	500 V	105 ░C	-55 °C	Copper Alloy	Thermoplastic	200 µin	5.08 µm	Board Guide	Square	30 Áin	0.76 Ám	Board to Board, Cable	Female Socket	2	14	All	0.179 "	4.55 mm
3M 150214-6002-TB	Black	Push-Pull	Tin-Lead	0.079 in	2 mm	0.079 in	2 mm	Through Hole	Receptacle	2.54 mm	0.1 in	UL94 V-0	Gold	Solder	500 V	105 ░C	-55 °C	Copper Alloy	Thermoplastic	200 µin	5.08 µm		Square	30 Áin	0.76 Ám	Board to Board, Cable	Female Socket	2	14	All	0.177 in	4.5 mm
3M 150214-6002-RB	Black	Push-Pull	Tin	0.079 in	2 mm	0.079 in	2 mm	Through Hole	Receptacle	2.54 mm	0.1 in	UL94 V-0	Gold	Solder	500 V	105 ░C	-55 °C	Copper Alloy	Thermoplastic	200 µin	5.08 µm		Square	30 Áin	0.76 Ám	Board to Board, Cable	Female Socket	2	14	All	0.177 in	4.5 mm
3M 150214-6002-TH	Black	Push-Pull	Tin-Lead	0.079 in	2 mm	0.079 in	2 mm	Through Hole	Receptacle	2.54 mm	0.1 in	UL94 V-0	Gold	Solder	500 V	105 ░C	-55 °C	Copper Alloy	Thermoplastic	200 µin	5.08 µm		Square	15 µin	0.38 µm	Board to Board, Cable	Female Socket	2	14	All	0.177 in	4.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	532	$ 2.69

Description

General part information

150214 Series

14 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
