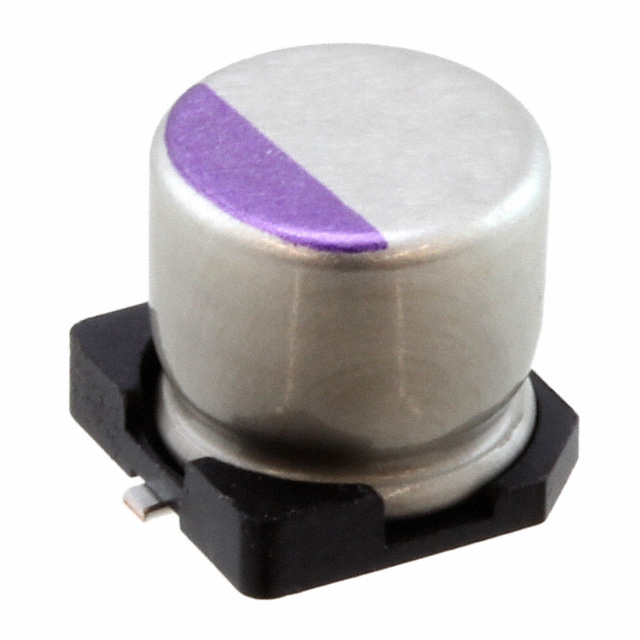

10SVPE220M

Active

Panasonic Electronic Components

CAP ALUM POLY 220UF 20% 10V SMD

Search across all available documentation for this part.

Active

Panasonic Electronic Components

CAP ALUM POLY 220UF 20% 10V SMD

Technical Specifications

Parameters and characteristics for this part

Specification	10SVPE220M

Applications	General Purpose
Capacitance	220 µF
ESR (Equivalent Series Resistance)	20 mOhms
Height - Seated (Max) [Max]	0.236 in
Height - Seated (Max) [Max]	6 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	2.7 A
Ripple Current @ Low Frequency	135 mA
Size / Dimension [diameter]	0.248 in
Size / Dimension [diameter]	6.3 mm
Surface Mount Land Size [x]	6.6 mm
Surface Mount Land Size [x]	0.26 in
Surface Mount Land Size [y]	0.26 in
Surface Mount Land Size [y]	6.6 mm
Tolerance	20 %
Type	Polymer
Voltage - Rated	10 V

CAP ALUM POLY 220UF 20% 10V SMD

Part	ESR (Equivalent Series Resistance)	Package / Case	Ripple Current @ Low Frequency	Applications	Voltage - Rated	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Capacitance	Mounting Type	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Tolerance
Panasonic Electronic Components 10SVPE220M	20 mOhms	Radial, Can - SMD	135 mA	General Purpose	10 V	Polymer	0.236 in	6 mm	0.248 in	6.3 mm	2000 Hrs	105 ░C	-55 °C	2.7 A	220 µF	Surface Mount	0.26 in	6.6 mm	6.6 mm	0.26 in	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

220 µF 10 V Aluminum - Polymer Capacitors Radial, Can - SMD 20mOhm 2000 Hrs @ 105°C
