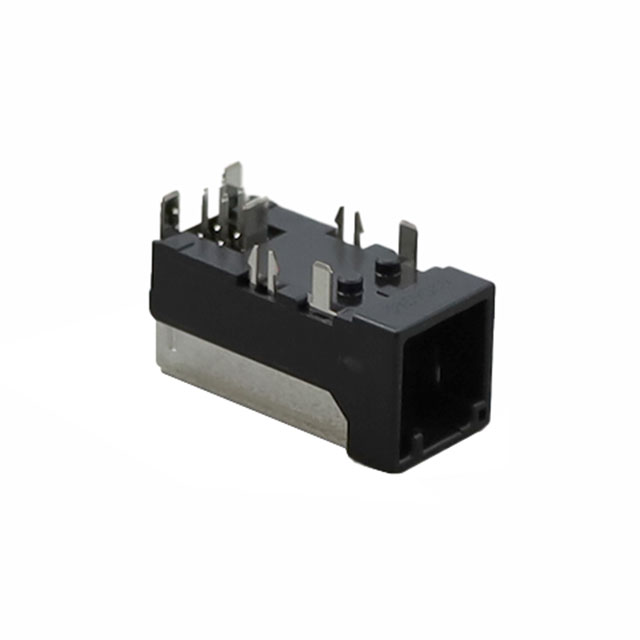

MX49004NQ2

Active

JAE Electronics

CONN PIN HEADER 4 POS R/A

Search across all available documentation for this part.

Active

JAE Electronics

CONN PIN HEADER 4 POS R/A

Technical Specifications

Parameters and characteristics for this part

Specification	MX49004NQ2

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Board Lock, Board Guide, Shielded
Insulation Color	Black
Insulation Height	0.492 in
Insulation Height	12.5 mm
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Number of Positions	Contact Material	Connector Type	Mounting Type	Number of Positions Loaded	Contact Finish - Mating	Features	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Insulation Height	Insulation Height	Contact Finish - Post	Contact Type	Style	Termination	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Shape
JAE Electronics MX49004NQ3	0.079 in	2 mm	Brown	4	Brass	Header	Surface Mount Right Angle Through Hole	All	Gold	Board Guide Board Lock Shielded	2	85 °C	-40 °C	Shrouded - 4 Wall	0.492 in	12.5 mm	Tin	Male Pin	Board to Cable/Wire	Solder	Latch Holder
JAE Electronics MX49004NQ2	0.079 in	2 mm	Black	4	Brass	Header	Through Hole Right Angle	All	Gold	Board Guide Board Lock Shielded	2	85 °C	-40 °C	Shrouded - 4 Wall	0.492 in	12.5 mm	Tin	Male Pin	Board to Cable/Wire	Solder	Latch Holder	0.13 in	3.3 mm
JAE Electronics MX49004NQ4	0.079 in	2 mm	Green	4	Brass	Header	Panel Mount Right Angle Through Hole	All	Gold	Board Guide Board Lock Solder Retention	2			Shrouded - 4 Wall	0.492 in	12.5 mm	Tin	Male Pin	Board to Cable/Wire	Solder		0.13 in	3.3 mm	Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 4 position 0.079" (2.00mm)
