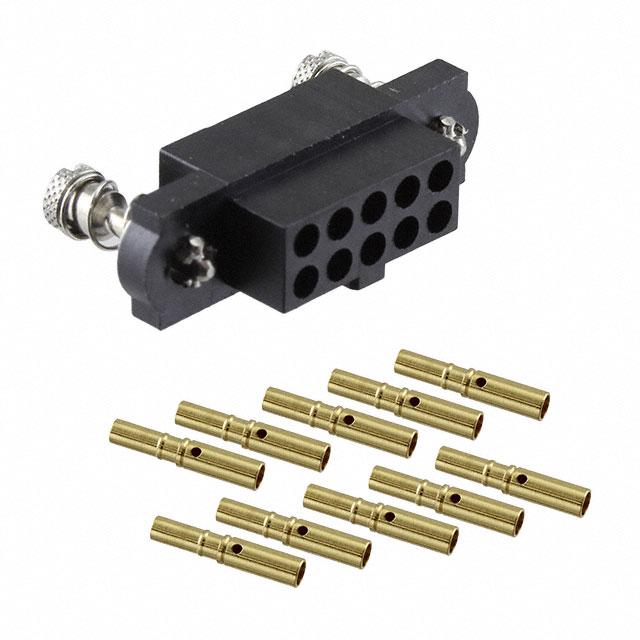

M80-4661005

Active

Harwin Inc.

BOARD CONNECTOR, 10 CONTACT(S), 2 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, M2X0.4, BLACK INSULATOR, PLUG, LEAD FREE

Search across all available documentation for this part.

Active

Harwin Inc.

BOARD CONNECTOR, 10 CONTACT(S), 2 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, M2X0.4, BLACK INSULATOR, PLUG, LEAD FREE

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Features	Number of Rows	Number of Positions	Color	Connector Type	Cable Termination	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Pitch [x]	Pitch [x]	Mounting Type	Row Spacing	Row Spacing
Harwin Inc. M80-4661442A	Gold	24 AWG	28 AWG	Jackscrews Polarizing Key	2	14	Black	Receptacle	Crimp	Female Socket	0.3 Ám	11.8 Áin	Discrete	0.079 in	2 mm	Free Hanging (In-Line)	2 mm	0.079 in
Harwin Inc. M80-4661005	Gold	24 AWG	28 AWG	Jackscrews Polarizing Key	2	10	Black	Receptacle	Crimp	Female Socket	0.3 Ám	11.8 Áin	Discrete	0.079 in	2 mm	Free Hanging (In-Line)	2 mm	0.079 in
Harwin Inc. M80-4661042A	Gold	24 AWG	28 AWG	Jackscrews Polarizing Key	2	10	Black	Receptacle	Crimp	Female Socket	0.3 Ám	11.8 Áin	Discrete	0.079 in	2 mm	Free Hanging (In-Line)	2 mm	0.079 in
Harwin Inc. M80-4660605	Gold	24 AWG	28 AWG	Jackscrews Polarizing Key	2	6	Black	Receptacle	Crimp	Female Socket	0.3 Ám	11.8 Áin	Discrete	0.079 in	2 mm	Free Hanging (In-Line)	2 mm	0.079 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
