3110-26-003-12-00-TR

Active

CnC Tech, LLC

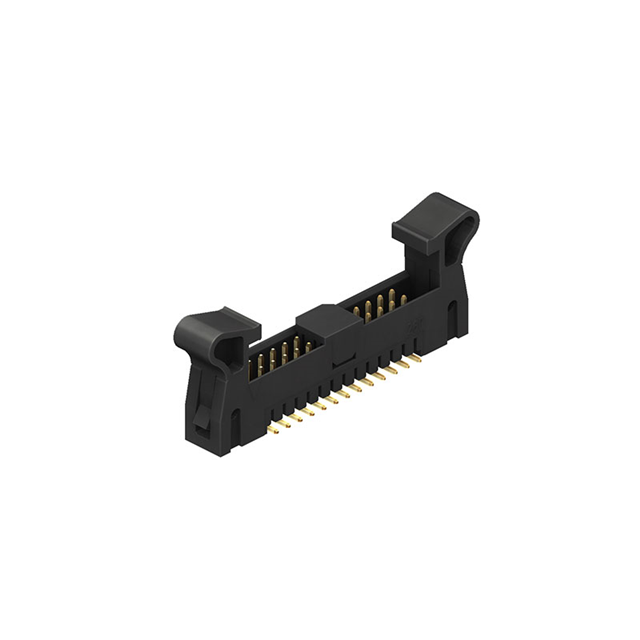

HEADER, 0.079" (2.00MM), 26 POS.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSoldering Guide 3X10,3X20,3221 Series Datasheet

3110-26-003-12-00-TR

Active

CnC Tech, LLC

HEADER, 0.079" (2.00MM), 26 POS.

Deep-Dive with AI

DocumentsSoldering Guide 3X10,3X20,3221 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3110-26-003-12-00-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

3110-26 Series

Part	Number of Positions	Contact Shape	Number of Rows	Contact Finish - Mating	Shrouding	Insulation Material	Termination	Style	Contact Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Type	Features	Connector Type	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Mounting Type	Contact Length - Post	Contact Length - Post
CnC Tech, LLC 3110-26-003-11-00-TR	26	Square	2	Gold	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Solder	Board to Cable/Wire	Brass	Push-Pull	-40 °C	105 ░C	Flash	Male Pin	Keying Slot	Header	UL94 V-0	0.079 in	2 mm	0.079 in	2 mm	All	Surface Mount
CnC Tech, LLC 3110-26-001-12-00	26	Square	2	Gold	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Solder	Board to Cable/Wire	Brass	Latch Lock/Eject Hooks Short	-40 °C	105 ░C	Flash	Male Pin	Keying Slot	Header	UL94 V-0	0.079 in	2 mm	0.079 in	2 mm	All	Through Hole	0.122 "	3.1 mm
CnC Tech, LLC 3110-26-001-11-00	26	Square	2	Gold	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Solder	Board to Cable/Wire	Brass	Push-Pull	-40 °C	105 ░C	Flash	Male Pin	Keying Slot	Header	UL94 V-0	0.079 in	2 mm	0.079 in	2 mm	All	Through Hole	0.122 "	3.1 mm
CnC Tech, LLC 3110-26-003-13-00	26	Square	2	Gold	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Solder	Board to Cable/Wire	Brass	Latch Lock/Eject Hooks Long	-40 °C	105 ░C	Flash	Male Pin	Keying Slot	Header	UL94 V-0	0.079 in	2 mm	0.079 in	2 mm	All	Surface Mount
CnC Tech, LLC 3110-26-003-12-00-TR	26	Square	2	Gold	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Solder	Board to Cable/Wire	Brass	Latch Lock/Eject Hooks Short	-40 °C	105 ░C	Flash	Male Pin	Keying Slot	Header	UL94 V-0	0.079 in	2 mm	0.079 in	2 mm	All	Surface Mount
CnC Tech, LLC 3110-26-003-12-00	26	Square	2	Gold	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Solder	Board to Cable/Wire	Brass	Latch Lock/Eject Hooks Short	-40 °C	105 ░C	Flash	Male Pin	Keying Slot	Header	UL94 V-0	0.079 in	2 mm	0.079 in	2 mm	All	Surface Mount
CnC Tech, LLC 3110-26-003-11-00	26	Square	2	Gold	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Solder	Board to Cable/Wire	Brass	Push-Pull	-40 °C	105 ░C	Flash	Male Pin	Keying Slot	Header	UL94 V-0	0.079 in	2 mm	0.079 in	2 mm	All	Surface Mount
