BGS18MA14E6327XTSA1
ObsoleteInfineon Technologies
RF SWITCH, 3.8GHZ, -40 TO 85DEG C
Deep-Dive with AI
Search across all available documentation for this part.
BGS18MA14E6327XTSA1
ObsoleteInfineon Technologies
RF SWITCH, 3.8GHZ, -40 TO 85DEG C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BGS18MA14E6327XTSA1 |
|---|---|
| Frequency Range [Max] | 3.8 GHz |
| Frequency Range [Min] | 100 MHz |
| IIP3 | 65 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.7 dB |
| Isolation | 29 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

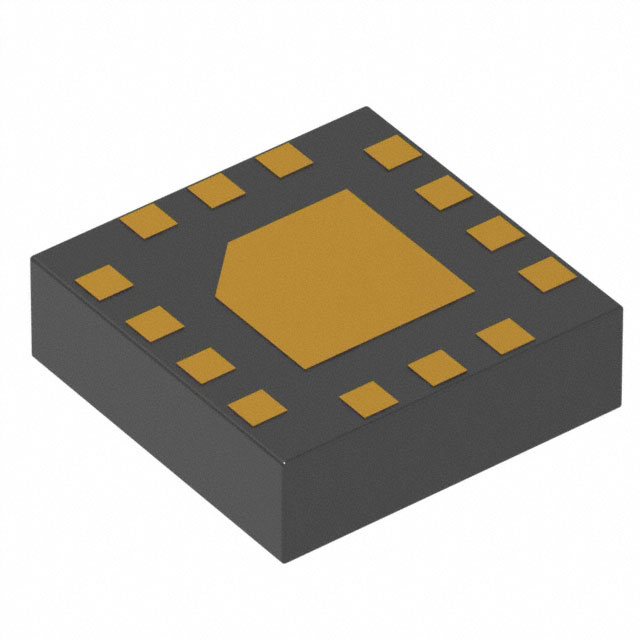

| Package / Case | 14-UFQFN Exposed Pad |
| RF Type | LTE, W-CDMA |
| Supplier Device Package | PG-ATSLP-14-10 |
| Test Frequency [Max] | 3.8 GHz |
| Test Frequency [Min] | 3.6 GHz |
| Voltage - Supply [Max] | 3.4 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BGS18MA14 Series
RF Switch IC LTE, W-CDMA SP8T 50Ohm PG-ATSLP-14-10
