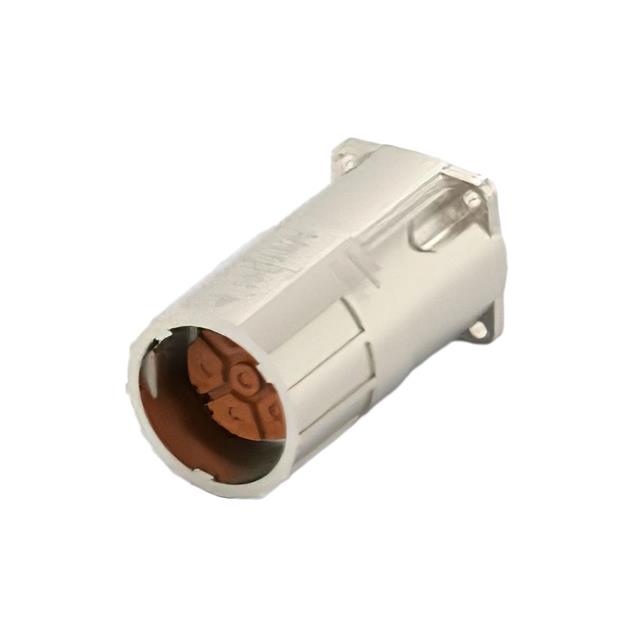

BDA107N00000050000

Active

TE Intercontec

CONN PLG HSG FMALE 6POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

BDA107N00000050000

Active

TE Intercontec

CONN PLG HSG FMALE 6POS PNL MT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BDA107N00000050000

Connector Type	Plug Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Coupling Nut
Housing Color	Silver
Includes	1 Connector, 1 O-Ring
Ingress Protection	IP66/IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shielding	Unshielded
Type	For Female Sockets

BDA10 Series

Part	Ingress Protection	Connector Type	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Orientation	Type	Includes	Fastening Type	Contact Shape	Features	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Note	Material Flammability Rating	Insert Material	Shell Material	Shell Finish	Shielding	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions
TE Intercontec BDA108N00000150000	IP66/IP67	Plug Housing	Flange	-20 C	130 °C	Silver	Keyed	For Female Sockets	1 Connector 1 O-Ring	Push-Twist	Circular	Coupling Nut	3	8	4	PE	Contacts Not Included	UL94 V-0	Polyamide (PA66) Nylon 6/6	Zinc Die Cast	Nickel	Unshielded
TE Intercontec BDA109N00000150000	IP66/IP67	Plug Housing	Flange	-20 C	130 °C	Silver	Keyed	For Female Sockets	1 Connector 1 O-Ring	Push-Twist	Circular	Coupling Nut				PE	Contacts Not Included	UL94 V-0	Polyamide (PA66) Nylon 6/6	Zinc Die Cast	Nickel	Unshielded	3	5	9
TE Intercontec BDA107N00000150000	IP66/IP67	Plug Housing	Flange	-20 C	130 °C	Silver	Keyed	For Female Sockets	1 Connector 1 O-Ring	Push-Twist	Circular	Coupling Nut					Contacts Not Included	UL94 V-0	Polyamide (PA66) Nylon 6/6	Zinc Die Cast	Nickel	Unshielded				6
TE Intercontec BDA107N00000050000	IP66/IP67	Plug Housing	Flange	-20 C	130 °C	Silver	Keyed	For Female Sockets	1 Connector 1 O-Ring	Push-Twist	Circular	Coupling Nut					Contacts Not Included	UL94 V-0	Polyamide (PA66) Nylon 6/6	Zinc Die Cast	Nickel	Unshielded				6
TE Intercontec BDA109N00000050000	IP66/IP67	Plug Housing	Flange	-20 C	130 °C	Silver	Keyed	For Female Sockets	1 Connector 1 O-Ring	Push-Twist	Circular	Coupling Nut				PE	Contacts Not Included	UL94 V-0	Polyamide (PA66) Nylon 6/6	Zinc Die Cast	Nickel	Unshielded	3	5	9
TE Intercontec BDA108N00000050000	IP66/IP67	Plug Housing	Flange	-20 C	130 °C	Silver	Keyed	For Female Sockets	1 Connector 1 O-Ring	Push-Twist	Circular	Coupling Nut	3	8	4	PE	Contacts Not Included	UL94 V-0	Polyamide (PA66) Nylon 6/6	Zinc Die Cast	Nickel	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 26.48
		10	$ 23.18
		40	$ 21.47
		80	$ 20.75
		280	$ 19.61
		520	$ 19.03

Description

General part information

BDA10 Series

6 (5 Power + PE) Position Circular Connector Plug Housing Panel Mount Coupling Nut
