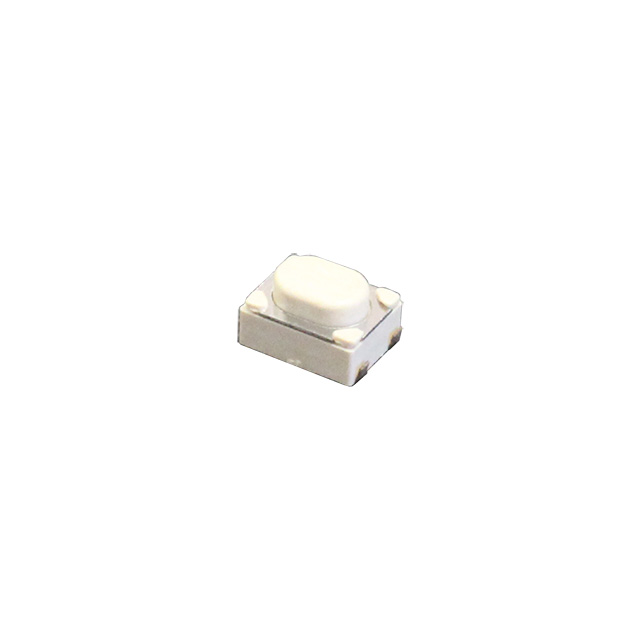

CS1215AJF160
ActiveCIT Relay and Switch
SWITCH TACTILE SPST-NO 0.05A 50V
CS1215AJF160
ActiveCIT Relay and Switch
SWITCH TACTILE SPST-NO 0.05A 50V
Description
General part information
CS1215A Series
Tactile Switch SPST-NO Top Actuated Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | CS1215AJF160 |
|---|---|
| Actuator Length (Right Angle) | 2.5 mm |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Oval Button |
| Circuit | SPST-NO |
| Contact Rating (Current) | 0.05 A |
| Illumination | Non-Illuminated |
| Mounting Type | Surface Mount |
| Operating Force | 160 gf |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Outline Length | 4.2 mm |
| Outline Width | 3.2 mm |
| Switch Function | Off-Mom |
| Termination Style | J Lead |
