2954808

Active

Phoenix Contact

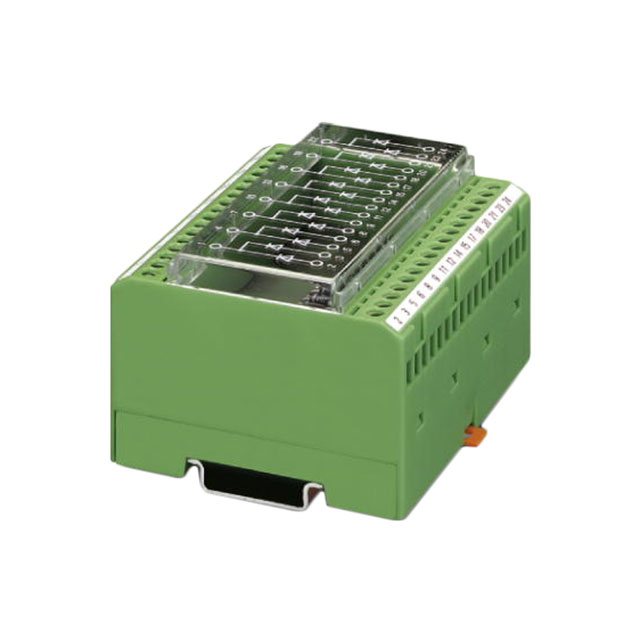

DIODE MODULE GP 1300V 400MA

Search across all available documentation for this part.

Active

Phoenix Contact

DIODE MODULE GP 1300V 400MA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2954808	29548 Series

Current - Average Rectified (Io) (per Diode)	400 mA	300 - 500 mA
Diode Configuration	8 Pair Common Cathode	8 Common Cathode, 8 Pair Common Cathode, 17 Independent, 8 Common Anode
Mounting Type	DIN Rail/Channel	DIN Rail/Channel
Operating Temperature - Junction [Max]	50 °C	50 °C
Operating Temperature - Junction [Min]	-20 °C	-20 °C
Package / Case	Module	Module
Speed	Standard Recovery >500ns	Standard Recovery >500ns
Speed	200 mA	200 mA
Supplier Device Package	Module	Module
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1300 V	1000 - 1300 V

DIODE MODULE GP 1000V 300MA

Part	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Diode Configuration	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Technology	Mounting Type	Current - Average Rectified (Io) (per Diode)
Phoenix Contact 2954879	Module	1000 V	Standard Recovery >500ns	200 mA	8 Common Cathode	50 °C	-20 °C	Module	Standard	DIN Rail/Channel	300 mA
Phoenix Contact 2954808	Module	1300 V	Standard Recovery >500ns	200 mA	8 Pair Common Cathode	50 °C	-20 °C	Module	Standard	DIN Rail/Channel	400 mA
Phoenix Contact 2954895	Module	1300 V	Standard Recovery >500ns	200 mA	17 Independent	50 °C	-20 °C	Module	Standard	DIN Rail/Channel	500 mA
Phoenix Contact 2954882	Module	1000 V	Standard Recovery >500ns	200 mA	8 Common Anode	50 °C	-20 °C	Module	Standard	DIN Rail/Channel	300 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 8 Pair Common Cathode 1300 V 400mA DIN Rail/Channel Module
