2954879

Active

Phoenix Contact

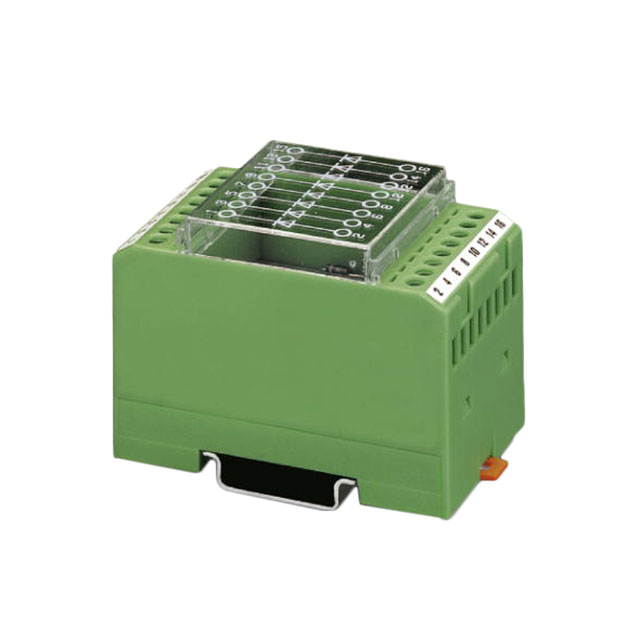

DIODE MODULE GP 1000V 300MA

Search across all available documentation for this part.

Active

Phoenix Contact

DIODE MODULE GP 1000V 300MA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 100.46

General part information

Diode Array 8 Common Cathode 1000 V 300mA DIN Rail/Channel Module

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2954879	29548 Series

Current - Average Rectified (Io) (per Diode)	300 mA	300 - 500 mA
Diode Configuration	8 Common Cathode	8 Common Cathode, 8 Pair Common Cathode, 17 Independent, 8 Common Anode
Mounting Type	DIN Rail/Channel	DIN Rail/Channel
Operating Temperature - Junction [Max]	50 °C	50 °C
Operating Temperature - Junction [Min]	-20 °C	-20 °C
Package / Case	Module	Module
Speed	Standard Recovery >500ns	Standard Recovery >500ns
Speed	200 mA	200 mA
Supplier Device Package	Module	Module
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1000 V	1000 - 1300 V

DIODE MODULE GP 1000V 300MA

Part	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Diode Configuration	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Technology	Mounting Type	Current - Average Rectified (Io) (per Diode)
Phoenix Contact 2954879	Module	1000 V	Standard Recovery >500ns	200 mA	8 Common Cathode	50 °C	-20 °C	Module	Standard	DIN Rail/Channel	300 mA
Phoenix Contact 2954808	Module	1300 V	Standard Recovery >500ns	200 mA	8 Pair Common Cathode	50 °C	-20 °C	Module	Standard	DIN Rail/Channel	400 mA
Phoenix Contact 2954895	Module	1300 V	Standard Recovery >500ns	200 mA	17 Independent	50 °C	-20 °C	Module	Standard	DIN Rail/Channel	500 mA
Phoenix Contact 2954882	Module	1000 V	Standard Recovery >500ns	200 mA	8 Common Anode	50 °C	-20 °C	Module	Standard	DIN Rail/Channel	300 mA
