31_N-716-50-1/---_UE

Active

Huber+Suhner, Inc.

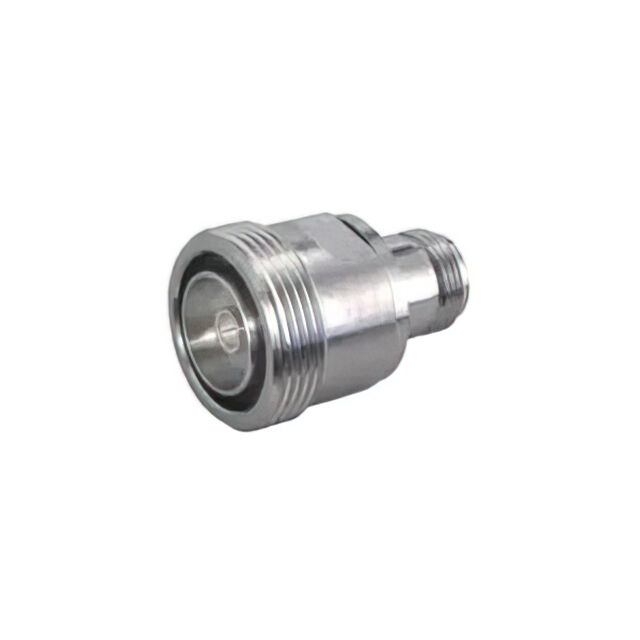

COAX ADAPT N TO 7/16

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

COAX ADAPT N TO 7/16

Technical Specifications

Parameters and characteristics for this part

Specification	31_N-716-50-1/---_UE

Adapter Series	N to 7/16
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Bronze, Beryllium Copper
Center Contact Plating	Gold, Silver
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, 7/16 Jack
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Center Gender	Body Finish	Center Contact Material	Frequency - Max [Max]	Adapter Type	Convert To (Adapter End)	Center Contact Plating	Mounting Type	Adapter Series	Style	Convert From (Adapter End)	Mating Cycles	Body Material	Impedance	Dielectric Material	Conversion Type	Operating Temperature [Min]	Operating Temperature [Max]
Huber+Suhner, Inc. 31_N-716-50-4/133_WE	Female to Female	White Bronze	Beryllium Copper	7.5 GHz	Jack to Jack	7/16 Jack Female Socket	Gold	Free Hanging (In-Line)	N to 7/16	Straight	Female Socket N Jack	500	Brass	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Between Series	-65 ░C	165 °C
Huber+Suhner, Inc. 31_N-716-50-1/---_UE	Female to Female	White Bronze	Beryllium Copper Bronze	7.5 GHz	Jack to Jack	7/16 Jack Female Socket	Gold Silver	Free Hanging (In-Line)	N to 7/16	Straight	Female Socket N Jack	500	Brass	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Between Series	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 123.59

General part information

Adapter Coaxial Connector N Jack, Female Socket To 7/16 Jack, Female Socket 50 Ohms
