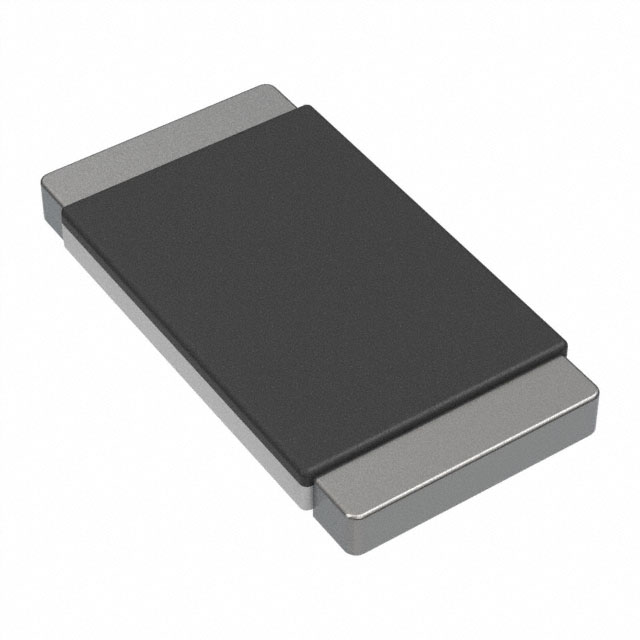

Specification	SCMM2512S5-0M80F

Composition	Metal Film
Features	Current Sense, Pulse Withstanding
Height - Seated (Max)	0.033 in
Number of Terminations	2
Operating Temperature (Max)	170 °C
Operating Temperature (Min)	-65 °C
Package / Case	2512 (6432 Metric)
Package Name	2512
Power (Watts)	5 W
Resistance	0.8 mOhms
Size / Dimension Length	0.25 in
Size / Dimension Width	0.126 in
Temperature Coefficient	75 ppm/¯C
Tolerance	1 %

SCMM2512S5 Series

Part	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Composition	Number of Terminations	Temperature Coefficient	Power (Watts)	Resistance	Package Name	Size / Dimension Width	Size / Dimension Length	Features	Height - Seated (Max)	Tolerance
Delta Electronics/Cyntec SCMM2512S5-0M50F	2512 (6332 Metric) 2512 (6432 Metric)	-65 °C	170 °C	Metal Film	2	100 ppm/°C	5 W	0.5 mOhms	2512	0.126 in	0.25 in	Current Sense Pulse Withstanding	0.033 in	1 %
Delta Electronics/Cyntec SCMM2512S5-R001F	2512 (6332 Metric) 2512 (6432 Metric)	-65 °C	170 °C	Metal Film	2	50 ppm/°C	5 W	1 mOhms	2512	0.126 in	0.25 in	Current Sense Pulse Withstanding	0.033 in	1 %
Delta Electronics/Cyntec SCMM2512S5-0M80F	2512 (6432 Metric)	-65 °C	170 °C	Metal Film	2	75 ppm/¯C	5 W	0.8 mOhms	2512	0.126 in	0.25 in	Current Sense Pulse Withstanding	0.033 in	1 %
