1053378-1
ActiveTE Connectivity AMP Connectors

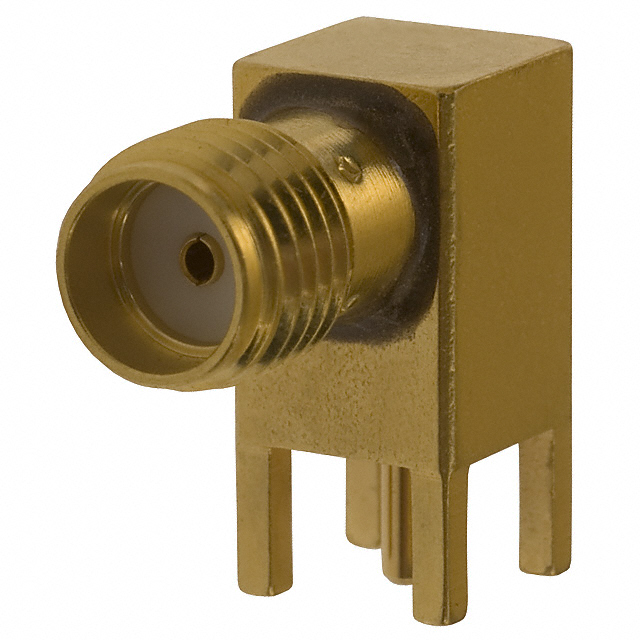

CONN SMA RCPT R/A 50 OHM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1053378-1
ActiveTE Connectivity AMP Connectors
CONN SMA RCPT R/A 50 OHM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1053378-1 | 1053 Series |
|---|---|---|
| Body Finish | Gold | Gold |
| Body Material | Stainless Steel | Stainless Steel |
| Center Contact Material | Beryllium Copper | Beryllium Copper |
| Center Contact Plating | Gold | Gold |
| Connector Style | SMA | SMA |
| Connector Type | Receptacle, Female Socket | Female Socket, Jack, Receptacle |
| Contact Termination | Solder | Solder, Turret |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Features | - | Hermetically Sealed, Extended Insulation |
| Frequency - Max [Max] | 12.4 GHz | 12.4 - 26.5 GHz |
| Housing Color | Gold | Gold, Silver |
| Impedance | 50 Ohms | 50 Ohms |
| Includes | - | 1 Connector, 1 Gasket, 1 Contact, 1 Lockwasher, 1 Nut |
| Mating Cycles | 500 | 500 |
| Mounting Feature | - | Bulkhead - Front Side Nut, Flange |
| Mounting Type | Through Hole, Right Angle | Through Hole, Panel Mount, Threaded, Through Hole, Right Angle |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 - 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Shield Termination | Solder | Solder |
| Voltage Rating | 335 V | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1053 Series
CONN SMA JACK STR 50 OHM PCB
| Part | Contact Termination | Body Material | Impedance | Connector Style | Shield Termination | Body Finish | Center Contact Material | Mating Cycles | Center Contact Plating | Dielectric Material | Connector Type | Housing Color | Mounting Type | Number of Ports | Frequency - Max [Max] | Includes | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Features | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1053354-1 | Solder | Stainless Steel | 50 Ohms | SMA | Solder | Gold | Beryllium Copper | 500 | Gold | Polytetrafluoroethylene (PTFE) | Female Socket, Jack | Gold | Through Hole | 1 | |||||||
TE Connectivity AMP Connectors 1053226-1 | Solder | Stainless Steel | 50 Ohms | SMA | Solder | Gold | Beryllium Copper | 500 | Gold | Polytetrafluoroethylene (PTFE) | Female Socket, Receptacle | Gold | Panel Mount, Threaded | 1 | 26.5 GHz | 1 Connector, 1 Gasket | 335 V | 125 °C | -65 ░C | Extended Insulation, Hermetically Sealed | |
TE Connectivity AMP Connectors 1053241-1 | Solder | Stainless Steel | 50 Ohms | SMA | Solder | Gold | Beryllium Copper | 500 | Gold | Polytetrafluoroethylene (PTFE) | Female Socket, Receptacle | Gold | Panel Mount, Threaded | 1 | Extended Insulation, Hermetically Sealed | ||||||
TE Connectivity AMP Connectors 1053005-1 | SMA | ||||||||||||||||||||
TE Connectivity AMP Connectors 1053378-1 | Solder | Stainless Steel | 50 Ohms | SMA | Solder | Gold | Beryllium Copper | 500 | Gold | Polytetrafluoroethylene (PTFE) | Female Socket, Receptacle | Gold | Through Hole, Right Angle | 1 | 12.4 GHz | 335 V | 125 °C | -65 ░C | |||
TE Connectivity AMP Connectors 1053252-1 | Solder | Stainless Steel | 50 Ohms | SMA | Solder | Beryllium Copper | Gold | Polytetrafluoroethylene (PTFE) | Female Socket, Receptacle | Silver | Panel Mount, Threaded | 1 | 18 GHz | 1 Connector, 1 Contact, 1 Gasket | 165 °C | -65 ░C | |||||
TE Connectivity AMP Connectors 1053086-1 | Solder | Stainless Steel | 50 Ohms | SMA | Solder | Gold | Beryllium Copper | 500 | Gold | Polytetrafluoroethylene (PTFE) | Female Socket, Receptacle | Gold | 1 | 18 GHz | 1 Connector, 1 Contact, 1 Lockwasher, 1 Nut | 335 V | 165 °C | -65 ░C | Bulkhead - Front Side Nut | ||
TE Connectivity AMP Connectors 1053403-1 | Turret | Stainless Steel | 50 Ohms | SMA | Solder | Beryllium Copper | 500 | Gold | Polytetrafluoroethylene (PTFE) | Female Socket, Jack | Silver | 1 | 12.4 GHz | 335 V | 125 °C | -65 ░C | Flange |
Description
General part information
1053 Series
SMA Connector Receptacle, Female Socket 50 Ohms Through Hole, Right Angle Solder
