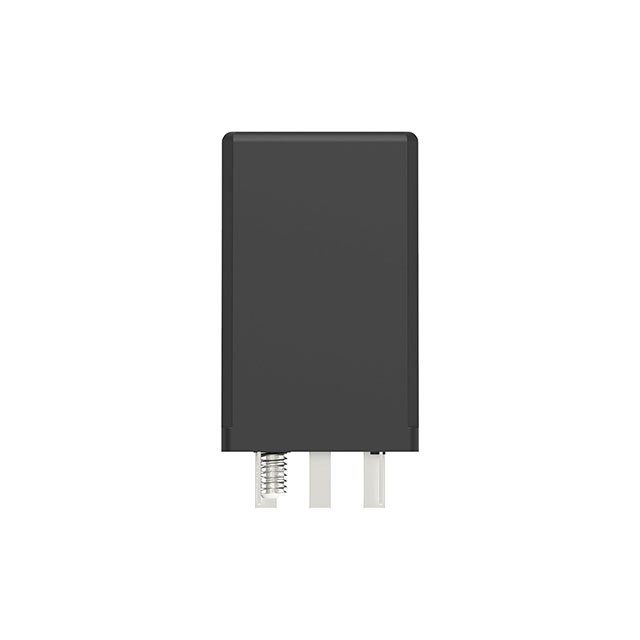

1423795-1

Active

TE Connectivity Potter & Brumfield Relays

RELAY DPDT 7.5A 24V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY DPDT 7.5A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Contact Rating (Current)	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Termination Style	Mounting Type	Coil Current	Contact Form	Coil Voltage	Coil Type	Coil Resistance	Contact Material	Switching Voltage
TE Connectivity Potter & Brumfield Relays 1423795-1	CSA UR	7.5 A	18 VDC	75 ░C	-55 °C	General Purpose	Plug In 8 Pin (Octal)	Socketable	7.5 mA	DPDT (2 Form C)	24 VDC	Non Latching	3.2 kOhms	Silver Cadmium Oxide (AgCdO)	120 VAC
TE Connectivity Potter & Brumfield Relays R10-E1W2-V15.0K	CSA UR	7.5 A	86 VDC	75 ░C	-55 °C	General Purpose	Plug In	Socketable	7.7 mA	DPDT (2 Form C)	115 VDC	Non Latching	15 kOhms	Silver Cadmium Oxide (AgCdO)	120 VAC
TE Connectivity Potter & Brumfield Relays R10-E1W2-S140	CSA UR	7.5 A	3.75 VDC	75 ░C	-55 °C	General Purpose	Plug In	Socketable	35.7 mA	DPDT (2 Form C)	5 VDC	Non Latching	140 Ohms	Silver Cadmium Oxide (AgCdO)	120 VAC
TE Connectivity Potter & Brumfield Relays R10-E1W2-V700	CSA UR	7.5 A	18 VDC	75 ░C	-55 °C	General Purpose	Plug In	Socketable	34.3 mA	DPDT (2 Form C)	24 VDC	Non Latching	700 Ohms	Silver Cadmium Oxide (AgCdO)	120 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 77.54

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
