307-016-425-158
ActiveEDAC Inc.

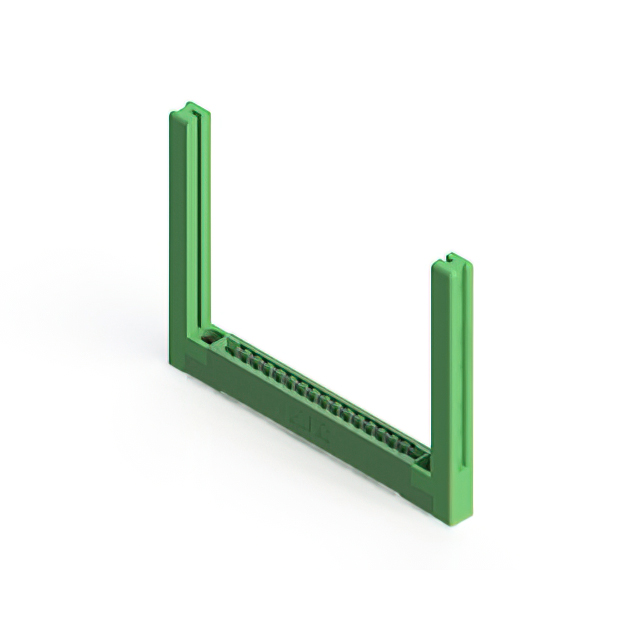

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 16 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
307-016-425-158
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 16 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-016-425-158 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 16 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
307-016 Series
...
| Part | Number of Positions/Bay/Row [custom] | Gender | Pitch [x] | Pitch [x] | Contact Material | Color | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Termination Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Rows | Termination | Mounting Type | Contact Type | Number of Positions | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 16 | Female | 0.156 in | 3.96 mm | Copper Alloy | Green | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | 1 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 2 | Solder | Through Hole Right Angle | Semi Bellows | |||||||
EDAC Inc. | Female | 0.156 in | 3.96 mm | Copper Alloy | Green | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 2 | Solder | Through Hole | Semi Bellows | 16 | 8 | 8 | 8 | ||||
EDAC Inc. | 16 | Female | 0.156 in | 3.96 mm | Copper Alloy | Green | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Non Specified - Single Edge | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Wire Wrap | Through Hole | Semi Bellows | 16 | Card Guides | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | 16 | Female | 0.156 in | 3.96 mm | Copper Alloy | Green | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Non Specified - Single Edge | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Solder | Through Hole | Semi Bellows | 16 | Card Guides | |||||||
EDAC Inc. | 16 | Female | 0.156 in | 3.96 mm | Copper Alloy | Green | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Non Specified - Single Edge | 1 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 1 | Solder | Through Hole Right Angle | Semi Bellows | 16 | ||||||
EDAC Inc. | Female | 0.156 in | 3.96 mm | Copper Alloy | Green | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | 2 | Solder | Through Hole | Semi Bellows | 16 | 8 | 8 | 8 | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | 16 | Female | 0.156 in | 3.96 mm | Copper Alloy | Green | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Non Specified - Single Edge | 1 | Flush Mount M3 Threaded Insert Top Opening | 1 | Wire Wrap | Through Hole | Semi Bellows | 16 | 10 Áin | 0.25 Ám | ||||||
EDAC Inc. | 16 | Female | 0.156 in | 3.96 mm | Copper Alloy | Green | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | 1 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 2 | Solder | Through Hole Right Angle | Semi Bellows | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | 16 | Female | 0.156 in | 3.96 mm | Copper Alloy | Green | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Solder Eyelet(s) | Through Hole | Semi Bellows | 10 Áin | 0.25 Ám | |||||||
EDAC Inc. | 16 | Female | 0.156 in | 3.96 mm | Copper Alloy | Green | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | 1 | Flush Mount M3 Threaded Insert Top Opening | 2 | Solder Eyelet(s) | Through Hole | Semi Bellows |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
307-016 Series
16 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green
