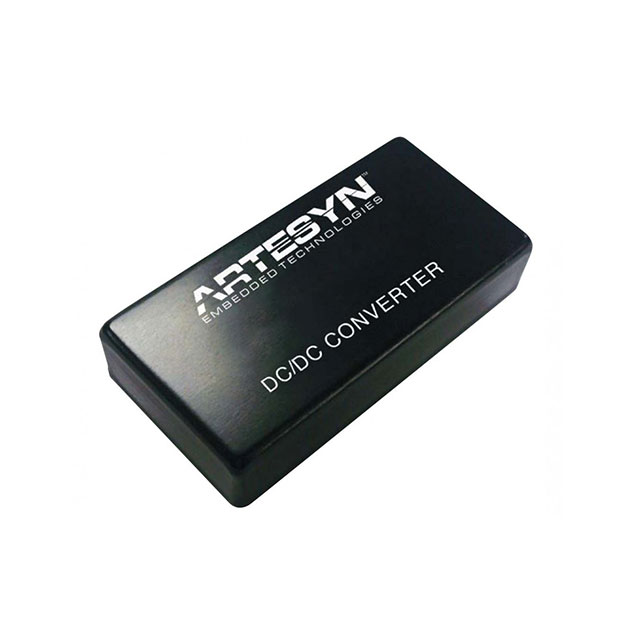

AEE02C18-LHS

Active

ARTESYN / Advanced Energy

MODULE DC-DC 1-OUT 15V 2.67A 40W 6-PIN DIP MODULE

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

MODULE DC-DC 1-OUT 15V 2.67A 40W 6-PIN DIP MODULE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 79.75

General part information

Isolated Module DC DC Converter 1 Output 15V 2.67A 9V - 36V Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

MODULE DC-DC 1-OUT 15V 2.67A 40W 6-PIN DIP MODULE

Part	Voltage - Isolation	Type	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Input (Max) [Max]	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Voltage - Output 1	Mounting Type	Power (Watts)	Current - Output (Max) [Max]	Number of Outputs	Features	Package / Case
ARTESYN / Advanced Energy AEE02C18-LHS	1.5 kV	Isolated Module	9 V	-40 °C	61 °C	6-DIP Module	36 V	ITE (Commercial)	17.2 mm	50.8 mm	31 mm	0.68 in	2 in	1.22 "	89 %	15 V	Through Hole	40 W	2.67 A	1
ARTESYN / Advanced Energy AEE02C48-M	4.2 kV	Isolated Module	36 V	-40 °C	80 ¯C	5-DIP Module	75 V	ITE (Commercial), Medical	12 mm	50.8 mm	25.4 mm	0.47 "	2 in	25.4 mm	88 %	15 V	Through Hole	20 W	1.33 A	1	OCP, OVP, SCP	4 Lead
ARTESYN / Advanced Energy AEE02C18-L	1.5 kV	Isolated Module	9 V	-40 °C	85 °C	6-DIP Module	36 V	ITE (Commercial)	10.2 mm	50.8 mm	25.4 mm	0.4 "	2 in	25.4 mm	92 %	15 V	Through Hole	40 W	2.67 A	1	OCP, OTP, OVP, Remote On/Off
ARTESYN / Advanced Energy AEE02C12-M	4.2 kV	Isolated Module	9 V	-40 °C	80 ¯C	5-DIP Module	18 V	ITE (Commercial), Medical	12 mm	50.8 mm	25.4 mm	0.47 "	2 in	25.4 mm	88 %	15 V	Through Hole	20 W	1.33 A	1	OCP, OVP, SCP	4 Lead
