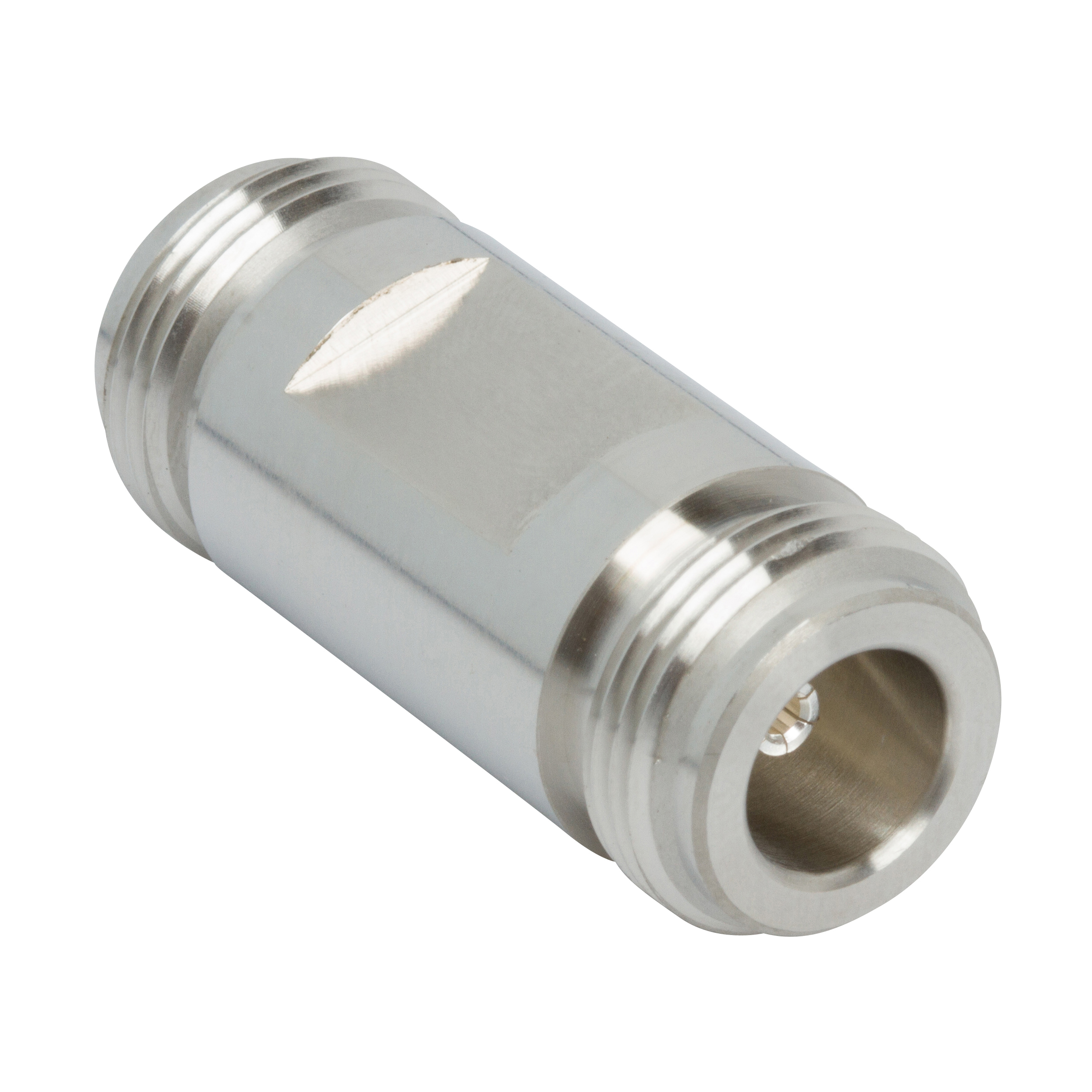

AD-NJNJ-2

Active

Amphenol RF

CONN TYPE N ADAPTER 0HZ TO 18GHZ 50OHM ST RCP/RCP SILVER

Search across all available documentation for this part.

Active

Amphenol RF

CONN TYPE N ADAPTER 0HZ TO 18GHZ 50OHM ST RCP/RCP SILVER

Technical Specifications

Parameters and characteristics for this part

Specification	AD-NJNJ-2

Adapter Series	N to N
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Low PIM
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Center Contact Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Frequency - Max [Max]	Adapter Type	Convert From (Adapter End)	Body Material	Adapter Series	Mating Cycles	Center Gender	Conversion Type	Body Finish	Mounting Type	Dielectric Material	Impedance	Features	Convert To (Adapter End)
Amphenol RF AD-NJNJ-2	Beryllium Copper	Silver	-65 ░C	165 °C	Straight	18 GHz	Jack to Jack	Female Socket N Jack	Brass	N to N	500	Female to Female	Same Series	White Bronze	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	50 Ohms	Low PIM	Female Socket N Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
