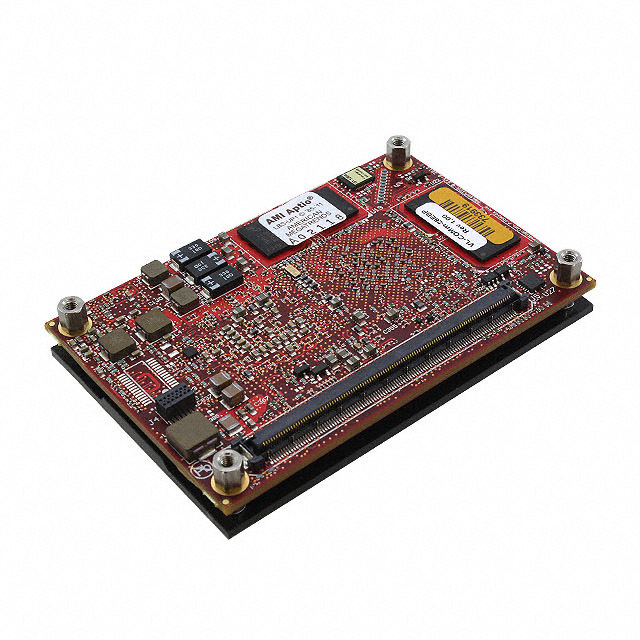

VL-COMM-26EBP

Obsolete

VersaLogic Corporation

SBC 1.0GHZ 1 CORE 1GB/1GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VL-COMM-26EBP

Obsolete

VersaLogic Corporation

SBC 1.0GHZ 1 CORE 1GB/1GB RAM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VL-COMM Series

Single Board Computer 1.0GHz 1 Core 1GB/1GB RAM Intel Atom E640T

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VL-COMM-26EBP	VL-COMM Series

Cooling Type	Heat Plate	Heat Plate, Heat Sink
Core Processor	-	Intel Atom E3815, Intel Atom E3845, Intel Atom E680T, Intel Atom E620T, Intel Atom E3827
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps	10 - 1000 Mbps
Form Factor	COM Express mini (Type 10)	COM Express mini (Type 10)
Number of Cores	1	1 - 4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	8.7 W	3.5 - 9.5 W
RAM Capacity/Installed	1GB/1GB	1GB/1GB
RAM Capacity/Installed	-	2 - 512 GB
Size / Dimension [x]	55 mm	55 mm
Size / Dimension [x]	2.17 "	2.17 "
Size / Dimension [y]	3.31 "	3.31 "
Size / Dimension [y]	84 mm	84 mm
Speed	1 GHz	1 - 600 GHz
Storage Interface	SATA3 (2), microSD	SATA3 (2), microSD
USB	USB 2.0 (7)	USB 2.0 (7)
USB	-	USB 2.0 (6), USB 3.0 (1)
Video Outputs	LVDS, DVI, VGA	LVDS, DVI, VGA
Watchdog Timer	True	True

VL-COMM Series

SBC 1.46GHZ 1 CORE 2GB/2GB RAM

Part	Number of Cores	Video Outputs	Storage Interface	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Core Processor	Cooling Type	RAM Capacity/Installed	Ethernet	Power (Watts)	USB [custom]	Form Factor	Operating Temperature [Max]	Operating Temperature [Min]	Speed	USB	RAM Capacity/Installed
VersaLogic Corporation VL-COMM-33EA	1	DVI, LVDS	microSD, SATA3 (2)	55 mm	2.17 "	3.31 "	84 mm	Intel Atom E3815	Heat Plate	2 GB	10 Mbps, 100 Mbps, 1000 Mbps	3.5 W	USB 2.0 (6), USB 3.0 (1)	COM Express mini (Type 10)	85 °C	-40 °C	1.46 GHz
VersaLogic Corporation VL-COMM-33ED	4	DVI, LVDS	microSD, SATA3 (2)	55 mm	2.17 "	3.31 "	84 mm	Intel Atom E3845	Heat Plate		10 Mbps, 100 Mbps, 1000 Mbps	7.3 W	USB 2.0 (6), USB 3.0 (1)	COM Express mini (Type 10)	85 °C	-40 °C	1.91 GHz
VersaLogic Corporation VL-COMM-26ECP	1	DVI, LVDS, VGA	microSD, SATA3 (2)	55 mm	2.17 "	3.31 "	84 mm	Intel Atom E680T	Heat Plate		10 Mbps, 100 Mbps, 1000 Mbps	9.5 W		COM Express mini (Type 10)	85 °C	-40 °C	1.6 GHz	USB 2.0 (7)	1GB/1GB
VersaLogic Corporation VL-COMM-26EAK	1	DVI, LVDS, VGA	microSD, SATA3 (2)	55 mm	2.17 "	3.31 "	84 mm	Intel Atom E620T	Heat Sink	512 MB	10 Mbps, 100 Mbps, 1000 Mbps	7.6 W		COM Express mini (Type 10)	85 °C	-40 °C	600 MHz	USB 2.0 (7)
VersaLogic Corporation VL-COMM-26EDP	1	DVI, LVDS, VGA	microSD, SATA3 (2)	55 mm	2.17 "	3.31 "	84 mm	Intel Atom E680T	Heat Plate	2 GB	10 Mbps, 100 Mbps, 1000 Mbps	9.5 W		COM Express mini (Type 10)	85 °C	-40 °C	1.6 GHz	USB 2.0 (7)
VersaLogic Corporation VL-COMM-26EBP	1	DVI, LVDS, VGA	microSD, SATA3 (2)	55 mm	2.17 "	3.31 "	84 mm		Heat Plate		10 Mbps, 100 Mbps, 1000 Mbps	8.7 W		COM Express mini (Type 10)	85 °C	-40 °C	1 GHz	USB 2.0 (7)	1GB/1GB
VersaLogic Corporation VL-COMM-26EBK	1	DVI, LVDS, VGA	microSD, SATA3 (2)	55 mm	2.17 "	3.31 "	84 mm		Heat Sink		10 Mbps, 100 Mbps, 1000 Mbps	8.7 W		COM Express mini (Type 10)	85 °C	-40 °C	1 GHz	USB 2.0 (7)	1GB/1GB
VersaLogic Corporation VL-COMM-33EB	2	DVI, LVDS	microSD, SATA3 (2)	55 mm	2.17 "	3.31 "	84 mm	Intel Atom E3827	Heat Plate	2 GB	10 Mbps, 100 Mbps, 1000 Mbps	5.6 W	USB 2.0 (6), USB 3.0 (1)	COM Express mini (Type 10)	85 °C	-40 °C	1.75 GHz
