CMLB051H-100MS

Active

Delta Electronics/Cyntec

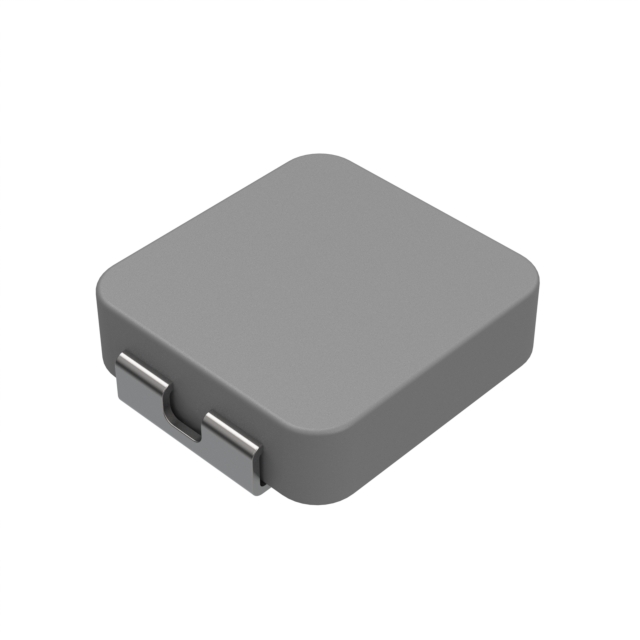

FIXED IND 10UH 2.5A 154MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMLB051H-100MS

Active

Delta Electronics/Cyntec

FIXED IND 10UH 2.5A 154MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMLB051H-100MS	CMLB051H Series

Current - Saturation (Isat)	2.8 A	2.8 - 17.1 A
Current Rating (Amps)	2.5 A	2.5 - 16 A
DC Resistance (DCR)	-	8.5 - 18 mOhm
DC Resistance (DCR) [Max]	154 mOhm	6.8 - 154 mOhm
Height - Seated (Max) [Max]	0.071 "	0.071 "
Height - Seated (Max) [Max]	1.8 mm	1.8 mm
Inductance	10 µH	0.68 - 470 µH
Inductance Frequency - Test	100 kHz	100 kHz
Material - Core	Metal	Metal
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Nonstandard	Nonstandard
Shielding	Shielded	Shielded
Size / Dimension [x]	5.4 mm	5.4 mm
Size / Dimension [x]	0.213 "	0.213 "
Size / Dimension [y]	5.2 mm	5.2 mm
Size / Dimension [y]	0.205 "	0.205 "
Tolerance	20 %	20 %

CMLB051H Series

FIXED IND 6.8UH 2.9A 125MOHM SMD

Part	Shielding	Current - Saturation (Isat)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current Rating (Amps)	DC Resistance (DCR) [Max]	Inductance	Tolerance	Package / Case	Material - Core	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Inductance Frequency - Test	DC Resistance (DCR)
Delta Electronics/Cyntec CMLB051H-6R8MS	Shielded	3.4 A	0.071 "	1.8 mm	2.9 A	125 mOhm	6.8 µH	20 %	Nonstandard	Metal	-55 °C	125 °C	5.2 mm	0.205 "	5.4 mm	0.213 "	Surface Mount	100 kHz
Delta Electronics/Cyntec CMLB051H-3R3MS	Shielded	4.8 A	0.071 "	1.8 mm	4.7 A		3.3 µH	20 %	Nonstandard	Metal	-55 °C	125 °C	5.2 mm	0.205 "	5.4 mm	0.213 "	Surface Mount	100 kHz
Delta Electronics/Cyntec CMLB051H-R47MS	Shielded	15.5 A	0.071 "	1.8 mm	11 A		470 nH	20 %	Nonstandard	Metal	-55 °C	125 °C	5.2 mm	0.205 "	5.4 mm	0.213 "	Surface Mount	100 kHz	8.5 mOhm
Delta Electronics/Cyntec CMLB051H-R68MS	Shielded	11.2 A	0.071 "	1.8 mm		13.8 mOhm	0.68 µH	20 %	Nonstandard	Metal	-55 °C	125 °C	5.2 mm	0.205 "	5.4 mm	0.213 "	Surface Mount	100 kHz
Delta Electronics/Cyntec CMLB051H-2R2MS	Shielded	6 A	0.071 "	1.8 mm	5.2 A	35 mOhm	2.2 µH	20 %	Nonstandard	Metal	-55 °C	125 °C	5.2 mm	0.205 "	5.4 mm	0.213 "	Surface Mount	100 kHz
Delta Electronics/Cyntec CMLB051H-1R5MS	Shielded	7.2 A	0.071 "	1.8 mm	6.2 A	28 mOhm	1.5 µH	20 %	Nonstandard	Metal	-55 °C	125 °C	5.2 mm	0.205 "	5.4 mm	0.213 "	Surface Mount	100 kHz
Delta Electronics/Cyntec CMLB051H-100MS	Shielded	2.8 A	0.071 "	1.8 mm	2.5 A	154 mOhm	10 µH	20 %	Nonstandard	Metal	-55 °C	125 °C	5.2 mm	0.205 "	5.4 mm	0.213 "	Surface Mount	100 kHz
Delta Electronics/Cyntec CMLB051H-1R0MS	Shielded	8.6 A	0.071 "	1.8 mm	8.5 A		1 µH	20 %	Nonstandard	Metal	-55 °C	125 °C	5.2 mm	0.205 "	5.4 mm	0.213 "	Surface Mount	100 kHz	18 mOhm
Delta Electronics/Cyntec CMLB051H-R33MS	Shielded	17.1 A	0.071 "	1.8 mm	16 A	6.8 mOhm	330 nH	20 %	Nonstandard	Metal	-55 °C	125 °C	5.2 mm	0.205 "	5.4 mm	0.213 "	Surface Mount	100 kHz
Delta Electronics/Cyntec CMLB051H-4R7MS	Shielded	3.9 A	0.071 "	1.8 mm	3.5 A	81 mOhm	4.7 ÁH	20 %	Nonstandard	Metal	-55 °C	125 °C	5.2 mm	0.205 "	5.4 mm	0.213 "	Surface Mount	100 kHz
