Specification	0512160400

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBTP)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.079 in

051216 Series

Part	Contact Termination	Insulation Material	Number of Positions	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Color	Pitch	Connector Type	Mounting Type	Contact Type	Number of Rows	Note
Molex 0512160200	Crimp	Polybutylene Terephthalate (PBTP)	2	Latch Lock	-40 °C	105 °C	Natural	0.079 in	Receptacle	Free Hanging (In-Line)	Female Socket	1	Contacts Not Included
Molex 0512160603
Molex 0512161100	Crimp	Polybutylene Terephthalate (PBTP)	11	Latch Lock	-40 °C	105 °C	Natural	0.079 in	Receptacle	Free Hanging (In-Line)	Female Socket	1	Contacts Not Included

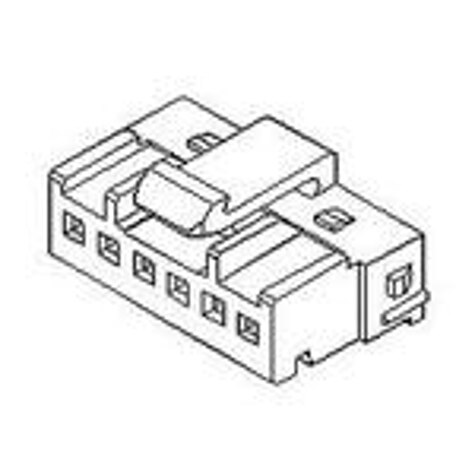

Molex 0512161000	Crimp	Polybutylene Terephthalate (PBTP)	10	Latch Lock	-40 °C	105 °C	Natural	0.079 in	Receptacle	Free Hanging (In-Line)	Female Socket	1	Contacts Not Included
Molex 0512160500	Crimp	Polybutylene Terephthalate (PBTP)	5	Latch Lock	-40 °C	105 °C	Natural	0.079 in	Receptacle	Free Hanging (In-Line)	Female Socket	1	Contacts Not Included
Molex 0512160900	Crimp	Polyester	9	Latch Lock	-40 °C	105 °C	Natural	0.079 in	Receptacle	Free Hanging (In-Line)	Female Socket	1	Contacts Not Included
Molex 0512160600	Crimp	Polybutylene Terephthalate (PBTP)	6	Latch Lock	-40 °C	105 °C	Natural	0.079 in	Receptacle	Free Hanging (In-Line)	Female Socket	1	Contacts Not Included
Molex 0512161200	Crimp	Polybutylene Terephthalate (PBTP)	12	Latch Lock	-40 °C	105 °C	Natural	0.079 in	Receptacle	Free Hanging (In-Line)	Female Socket	1	Contacts Not Included
Molex 0512160400	Crimp	Polybutylene Terephthalate (PBTP)	4	Latch Lock	-40 °C	105 °C	Natural	0.079 in	Receptacle	Free Hanging (In-Line)	Female Socket	1	Contacts Not Included
Molex 0512160300	Crimp	Polybutylene Terephthalate (PBTP)	3	Latch Lock	-40 °C	105 °C	Natural	0.079 in	Receptacle	Free Hanging (In-Line)	Female Socket	1	Contacts Not Included
