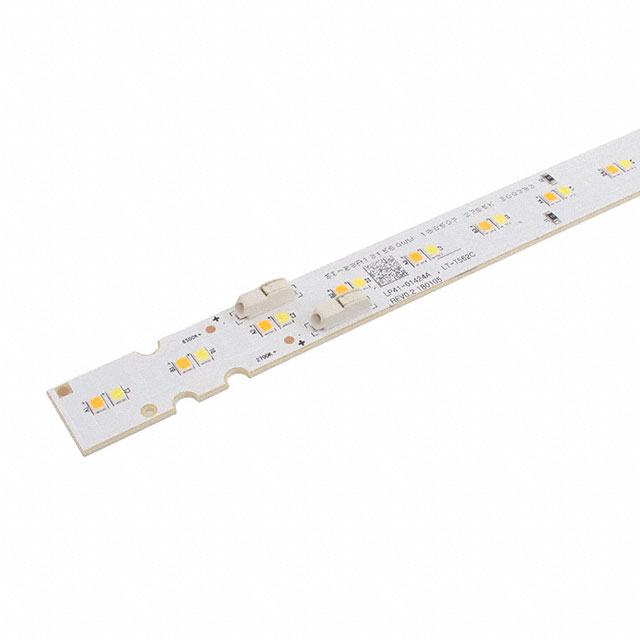

Specification	SI-B8A131560WW

CCT Options	6500K, 2700K
Color	Warm / White, Cool, White
Configuration	Linear Light Strip
Current - Test (Cool White)	750 mA
Current - Test (Warm White)	750 mA
Current - Test Colors	Cool White, Warm White
Height	5.8 mm
Lens Type	Flat
Lumens/Watt (White, Cool)	153 lm/W
Lumens/Watt (White, Warm)	141 lm/W
Lumens/Watt (White) Color Temperature	Warm, Cool
Luminous Flux (Cool White)	2060 lm
Luminous Flux (Warm White)	1900 lm
Luminous Flux (White)	1900 lm
Luminous Flux Colors	Warm White, Cool White, White
Size / Dimension Length	560 mm
Size / Dimension Width	18 mm
Temperature - Test	50 °C
Type	LED Module
Voltage - Forward (Vf) (Typ) Options	18V Cool White, 18V Warm White

SI-B8 Series

...

Part	Configuration	Current - Test	Temperature - Test	Color	Lumens/Watt	Type	Size / Dimension Width	Size / Dimension Length	Luminous Flux (Typical)	Features	Lens Type	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Viewing Angle	Current - Max	CCT (K)	CCT Description	Height	Luminous Flux (Maximum)	Luminous Flux (Minimum)	Luminous Flux
Samsung Semiconductor, Inc. SI-B8T162560WW	Linear Light Strip	700 mA	45 °C	Neutral White	127 lm/W	LED Module	40 mm	560 mm	2160 lm	With Connector	Flat	24.3 V	80	115 °	750 mA	4000 K	3-Step MacAdam Ellipse	5.6 mm
Samsung Semiconductor, Inc. SI-B8R09626001	Rectangle	385 mA	35 °C	Cool White	154 lm/W	LED Module	250 mm	259 mm	1420 lm	With Connector	Flat	24 VDC	80	115 °	600 mA	5000 K	4-Step MacAdam Ellipse	5.8 mm
Samsung Semiconductor, Inc. SI-B8R07128SWW	Linear Light Strip	800 mA	50 °C	Cool White	162 lm/W	LED Module	23.8 mm	279.7 mm	1140 lm	With Connector	Flat	8.8 V	80	115 °	1.44 A	5000 K	3-Step MacAdam Ellipse	5.8 mm
Samsung Semiconductor, Inc. SI-B8V09526001	Rectangle	385 mA	35 °C	Warm White	137 lm/W	LED Module	250 mm	259 mm	1260 lm	With Connector	Flat	24 VDC	80	145 °	600 mA	3000 K	3-Step MacAdam Ellipse	6.6 mm
Samsung Semiconductor, Inc. SI-B8U14156LWW	Linear Light Strip	400 mA	50 °C	Warm White	157 lm/W	LED Module	23.8 mm	559.7 mm	2210 lm	With Connector	Flat	35.2 V	80	115 °	720 mA	3500 K	3-Step MacAdam Ellipse	5.8 mm
Samsung Semiconductor, Inc. SI-B8V171560WW	Linear Light Strip	700 mA	50 °C	Warm White	140 lm/W	LED Module	18 mm	560 mm	2350 lm	With Connector	Flat	24 VDC	80	115 °	900 mA	3000 K	3-Step MacAdam Ellipse	5.8 mm
Samsung Semiconductor, Inc. SI-B8U10128001	Rectangle	700 mA	35 °C	Warm White	157 lm/W	LED Module	273 mm	230 mm	1320 lm	With Connector	Flat	12 VAC	80	115 °	1.6 A	3500 K	3-Step MacAdam Ellipse	6.7 mm
Samsung Semiconductor, Inc. SI-B8T171550WW	Linear Light Strip	700 mA	50 °C	Neutral White	146 lm/W	LED Module	18 mm	550 mm	2460 lm	With Connector	Flat	24 VDC	80	115 °	900 mA	4000 K	3-Step MacAdam Ellipse	5.8 mm
Samsung Semiconductor, Inc. SI-B8T251560WW	Linear Light Strip	1.12 A	65 °C	Neutral White	175 lm/W	LED Module	18 mm	560 mm	4510 lm		Flat	23 V	80	118 °	2.8 A	4000 K		5.5 mm
Samsung Semiconductor, Inc. SI-B8U26156CUS	Linear Light Strip	1.12 A	65 °C	Warm White	137 lm/W	LED Module	18 mm	560 mm			Flat	24.4 V	80		1.62 A	3500 K	3-Step MacAdam Ellipse	5.5 mm	4120 lm	3370 lm	3744 lm
