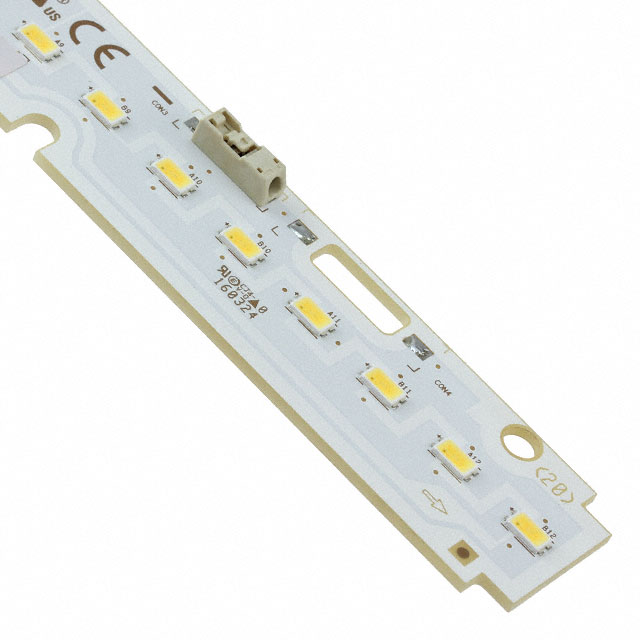

SI-B8R07128SWW

Obsolete

Samsung Semiconductor, Inc.

LED MOD LT-S282F LNR STRP 5000K

SI-B8R07128SWW

Obsolete

Samsung Semiconductor, Inc.

LED MOD LT-S282F LNR STRP 5000K

Description Specifications Series Pricing CAD Documents

Description

General part information

SI-B8 Series

LED Lighting COBs Engines Modules LED Module LT-S282F White, Cool Linear Light Strip

Technical Specifications

Parameters and characteristics for this part

Specification	SI-B8R07128SWW

CCT (K)	5000 K
CCT Description	3-Step MacAdam Ellipse
Color	Cool, White
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Current - Max	1.44 A
Current - Test	800 mA
Features	With Connector
Height	5.8 mm
Lens Type	Flat
Lumens/Watt	162 lm/W
Luminous Flux (Typical)	1140 lm
Size / Dimension Length	279.7 mm
Size / Dimension Width	23.8 mm
Temperature - Test	50 °C
Type	LED Module
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	8.8 V

SI-B8 Series

...

Part	Configuration	Current - Test	Temperature - Test	Color	Lumens/Watt	Type	Size / Dimension Width	Size / Dimension Length	Luminous Flux (Typical)	Features	Lens Type	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Viewing Angle	Current - Max	CCT (K)	CCT Description	Height	Luminous Flux (Maximum)	Luminous Flux (Minimum)	Luminous Flux
Samsung Semiconductor, Inc. SI-B8T162560WW	Linear Light Strip	700 mA	45 °C	Neutral White	127 lm/W	LED Module	40 mm	560 mm	2160 lm	With Connector	Flat	24.3 V	80	115 °	750 mA	4000 K	3-Step MacAdam Ellipse	5.6 mm
Samsung Semiconductor, Inc. SI-B8R09626001	Rectangle	385 mA	35 °C	Cool White	154 lm/W	LED Module	250 mm	259 mm	1420 lm	With Connector	Flat	24 VDC	80	115 °	600 mA	5000 K	4-Step MacAdam Ellipse	5.8 mm
Samsung Semiconductor, Inc. SI-B8R07128SWW	Linear Light Strip	800 mA	50 °C	Cool White	162 lm/W	LED Module	23.8 mm	279.7 mm	1140 lm	With Connector	Flat	8.8 V	80	115 °	1.44 A	5000 K	3-Step MacAdam Ellipse	5.8 mm
Samsung Semiconductor, Inc. SI-B8V09526001	Rectangle	385 mA	35 °C	Warm White	137 lm/W	LED Module	250 mm	259 mm	1260 lm	With Connector	Flat	24 VDC	80	145 °	600 mA	3000 K	3-Step MacAdam Ellipse	6.6 mm
Samsung Semiconductor, Inc. SI-B8U14156LWW	Linear Light Strip	400 mA	50 °C	Warm White	157 lm/W	LED Module	23.8 mm	559.7 mm	2210 lm	With Connector	Flat	35.2 V	80	115 °	720 mA	3500 K	3-Step MacAdam Ellipse	5.8 mm
Samsung Semiconductor, Inc. SI-B8V171560WW	Linear Light Strip	700 mA	50 °C	Warm White	140 lm/W	LED Module	18 mm	560 mm	2350 lm	With Connector	Flat	24 VDC	80	115 °	900 mA	3000 K	3-Step MacAdam Ellipse	5.8 mm
Samsung Semiconductor, Inc. SI-B8U10128001	Rectangle	700 mA	35 °C	Warm White	157 lm/W	LED Module	273 mm	230 mm	1320 lm	With Connector	Flat	12 VAC	80	115 °	1.6 A	3500 K	3-Step MacAdam Ellipse	6.7 mm
Samsung Semiconductor, Inc. SI-B8T171550WW	Linear Light Strip	700 mA	50 °C	Neutral White	146 lm/W	LED Module	18 mm	550 mm	2460 lm	With Connector	Flat	24 VDC	80	115 °	900 mA	4000 K	3-Step MacAdam Ellipse	5.8 mm
Samsung Semiconductor, Inc. SI-B8T251560WW	Linear Light Strip	1.12 A	65 °C	Neutral White	175 lm/W	LED Module	18 mm	560 mm	4510 lm		Flat	23 V	80	118 °	2.8 A	4000 K		5.5 mm
Samsung Semiconductor, Inc. SI-B8U26156CUS	Linear Light Strip	1.12 A	65 °C	Warm White	137 lm/W	LED Module	18 mm	560 mm			Flat	24.4 V	80		1.62 A	3500 K	3-Step MacAdam Ellipse	5.5 mm	4120 lm	3370 lm	3744 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SI-B8R07128SWW | Datasheet
