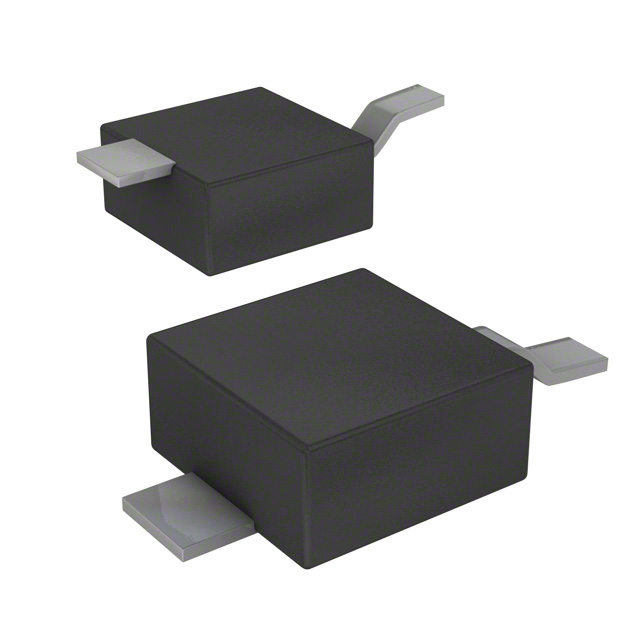

SM2T14A

Obsolete

STMicroelectronics

TVS DIODE 12VWM 19.9VC DO216AA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SM2T14A

Obsolete

STMicroelectronics

TVS DIODE 12VWM 19.9VC DO216AA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SM2T14A

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	9 A
Mounting Type	Surface Mount
Package / Case	DO-216AA
Power - Peak Pulse	200 W
Power Line Protection	False
Supplier Device Package	DO-216AA
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	13.3 V
Voltage - Clamping (Max) @ Ipp [Max]	19.9 V
Voltage - Reverse Standoff (Typ)	12 V

SM2T Series

200 W TVS in STmite

Part	Unidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Power Line Protection	Supplier Device Package	Type	Mounting Type	Package / Case	Current - Peak Pulse (10/1000µs)	Power - Peak Pulse	Applications	Voltage - Reverse Standoff (Typ)
STMicroelectronics SM2T14A	1	13.3 V	19.9 V		DO-216AA	Zener	Surface Mount	DO-216AA	9 A	200 W	General Purpose	12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SM2T Series

The SM2T series are Transil diodes designed specifically for portable equipment and miniaturized electronics devices subject to ESD transient overvoltages.

Fully compatible with pick and place equipment and inspectable soldering joints.
