FPL240/60/16-BH1T

Active

KEMET

FERRITE MATERIAL, WPT, 240 X 60 X 16 MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

FERRITE MATERIAL, WPT, 240 X 60 X 16 MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET FPL240/60/20-BH1T	20 mm	0.787 "	60 mm	2.362 in	240 mm	9.449 "
KEMET FPL240/60/16-BH1T			60 mm	2.362 in	240 mm	9.449 "	0.63 in	16 mm
KEMET FPL240/60/12-BH1T	12 mm	0.472 "	60 mm	2.362 in	240 mm	9.449 "
KEMET FPL240/60/5-BH1T	5 mm	0.197 in	60 mm	2.362 in	240 mm	9.449 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

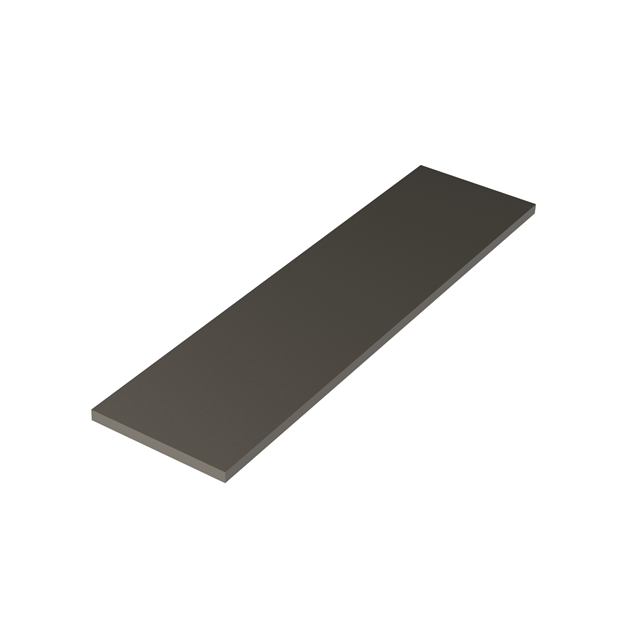

Ferrite Plate 9.449" L x 2.362" W (240.00mm x 60.00mm)
