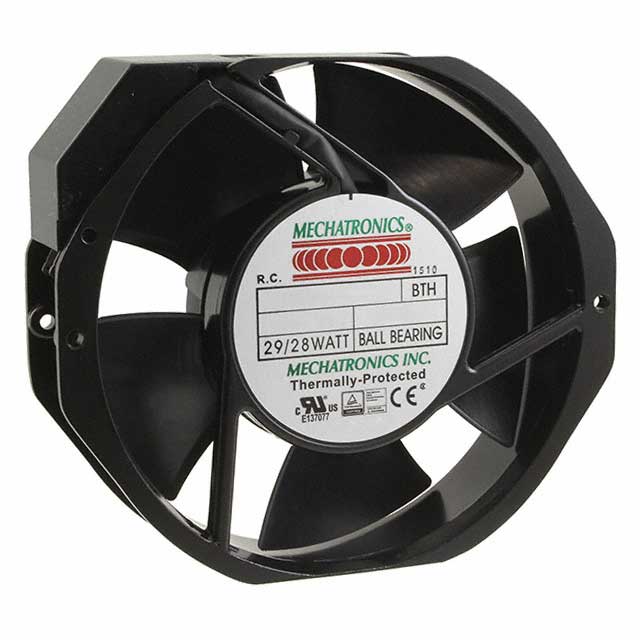

UF15AC12-BTHR

Active

Mechatronics Fan Group

FAN AXIAL 172X150X38MM 115VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC Axial Part Numbering Guide +1

UF15AC12-BTHR

Active

Mechatronics Fan Group

FAN AXIAL 172X150X38MM 115VAC

Deep-Dive with AI

DocumentsDatasheet AC Axial Part Numbering Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF15AC12-BTHR	UF15A Series

Air Flow	212 CFM	103 - 212 CFM
Air Flow	5.94 m³/min	2.88 - 5.94 m³/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.23 A	0.23 - 150 A
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Dual Voltage, Thermal Overload Protector (TOP), Permanent Split Capacitor Motor, Speed Sensor (Tach), Conformal Coating
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum	Aluminum
Noise	58 dB(A)	44 - 58 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	28 W	26 - 28 W
RPM	3400 RPM	1700 - 3400 RPM
Size / Dimension	Rectangular/Rounded	Rectangular/Rounded
Size / Dimension [x]	172 mm	172 mm
Size / Dimension [z]	150 mm	150 mm
Static Pressure	0.75 in H2O	0.26 - 0.75 in H2O
Static Pressure	186.8 Pa	64.8 - 186.8 Pa
Termination	2 Terminals	2 Wire Leads, 2 Terminals
Termination	-	3 Terminals
Voltage - Rated	115 VAC	115 - 230 VAC
Voltage - Rated	-	230 VAC
Voltage - Rated	-	115 VAC
Weight	725.7 g	725.7 g
Weight	1.6 lbs	1.6 lbs
Width [y]	38 mm	38 mm

UF15A Series

FAN AXIAL 172X150X38MM 115/230V

Part	Termination	Features	Weight	Weight	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Fan Type	Static Pressure	Static Pressure	Material - Blade	Material - Frame	Width [y]	RPM	Approval Agency	Voltage - Rated [Max]	Voltage - Rated [Min]	Power (Watts)	Noise	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Current Rating (Amps)	Termination
Mechatronics Fan Group UF15AC12/23-BWHR	2 Wire Leads	Dual Voltage, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	725.7 g	1.6 lbs	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	0.75 in H2O	186.8 Pa	Polybutylene Terephthalate (PBT)	Aluminum	38 mm	3400 RPM	CE, cUL, TUV, UL	230 VAC	115 VAC	26 W, 28 W	58 dB(A)	212 CFM	5.94 m³/min	70 °C	70 °C	-40 °C	-40 °C
Mechatronics Fan Group UF15AC12-BWHR	2 Wire Leads	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	725.7 g	1.6 lbs	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	0.75 in H2O	186.8 Pa	Polybutylene Terephthalate (PBT)	Aluminum	38 mm	3400 RPM	CE, cUL, TUV, UL			28 W	58 dB(A)	212 CFM	5.94 m³/min	70 °C	70 °C	-40 °C	-40 °C	115 VAC	0.23 A
Mechatronics Fan Group UF15AC12-BTHR	2 Terminals	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	725.7 g	1.6 lbs	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	0.75 in H2O	186.8 Pa	Polybutylene Terephthalate (PBT)	Aluminum	38 mm	3400 RPM	CE, cUL, TUV, UL			28 W	58 dB(A)	212 CFM	5.94 m³/min	70 °C	70 °C	-40 °C	-40 °C	115 VAC	0.23 A
Mechatronics Fan Group UF15AC12-BWHR-L36	2 Wire Leads	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	725.7 g	1.6 lbs	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	0.75 in H2O	186.8 Pa	Polybutylene Terephthalate (PBT)	Aluminum	38 mm	3400 RPM	CE, cUL, TUV, UL			28 W	58 dB(A)	212 CFM	5.94 m³/min	70 °C	70 °C	-40 °C	-40 °C	115 VAC	0.23 A
Mechatronics Fan Group UF15AC23-BTMR	2 Terminals	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	725.7 g	1.6 lbs	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial			Polybutylene Terephthalate (PBT)	Aluminum	38 mm		CE, cUL, TUV, UL							70 °C	70 °C	-40 °C	-40 °C	230 VAC
Mechatronics Fan Group UF15AC23-BTLR	2 Terminals	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	725.7 g	1.6 lbs	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	0.26 in H2O	64.8 Pa	Polybutylene Terephthalate (PBT)	Aluminum	38 mm	1700 RPM	CE, cUL, TUV, UL			26 W	44 dB	103 CFM	2.88 mł/min	70 °C	70 °C	-40 °C	-40 °C	230 VAC	70 mA
Mechatronics Fan Group UF15AC23-BTHR	2 Terminals	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	725.7 g	1.6 lbs	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	0.75 in H2O	186.8 Pa	Polybutylene Terephthalate (PBT)	Aluminum	38 mm	3400 RPM	CE, cUL, TUV, UL			26 W	58 dB(A)	212 CFM	5.94 m³/min	70 °C	70 °C	-40 °C	-40 °C	230 VAC	110 mA
Mechatronics Fan Group UF15AC12-BTLR	2 Terminals	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	725.7 g	1.6 lbs	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	0.26 in H2O	64.8 Pa	Polybutylene Terephthalate (PBT)	Aluminum	38 mm	1700 RPM	CE, cUL, TUV, UL			28 W	44 dB	103 CFM	2.88 mł/min	70 °C	70 °C	-40 °C	-40 °C	115 VAC	150 mA
Mechatronics Fan Group UF15AC23-BTHR-B1		Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	725.7 g	1.6 lbs	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	0.75 in H2O	186.8 Pa	Polybutylene Terephthalate (PBT)	Aluminum	38 mm	3400 RPM	CE, cUL, TUV, UL			26 W	58 dB(A)	212 CFM	5.94 m³/min	70 °C	70 °C	-40 °C	-40 °C	230 VAC	110 mA	3 Terminals
Mechatronics Fan Group UF15AC12-BTHR-CC	2 Terminals	Conformal Coating, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	725.7 g	1.6 lbs	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	0.75 in H2O	186.8 Pa	Polybutylene Terephthalate (PBT)	Aluminum	38 mm	3400 RPM	CE, cUL, TUV, UL			28 W	58 dB(A)	212 CFM	5.94 m³/min	70 °C	70 °C	-40 °C	-40 °C	115 VAC	0.23 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.43
		20	$ 42.40
		40	$ 40.79
		60	$ 38.11
		100	$ 35.16
		260	$ 34.62

Description

General part information

UF15A Series

Fan Tubeaxial 115VAC Rectangular/Rounded - 172mm L x 150mm H Ball 212.0 CFM (5.94m³/min) 2 Terminals

Documents

Technical documentation and resources

Datasheet

AC Axial Part Numbering Guide

Datasheet

Installation Instructions

Datasheet
