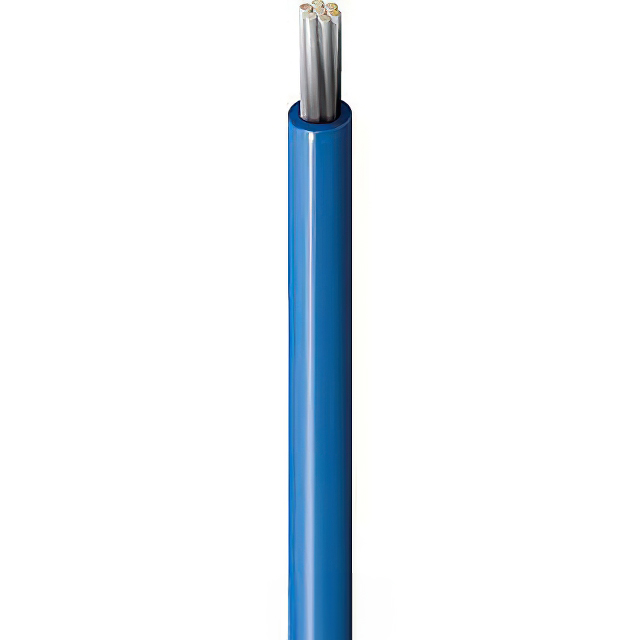

Specification	8525 007100

Cable Type	Hook-Up
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	32 AWG
Features	Chemical Resistant
Jacket (Insulation) Diameter	0.058 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Violet
Length	100 ft
Qualification	MIL-W-76C Type MW
Voltage	1000 V
Wire Gauge	24 AWG

8525 Series

Part	Jacket (Insulation) Thickness	Conductor Material	Voltage	Length	Conductor Strand Gauge	Conductor Strand Count	Wire Gauge	Cable Type	Jacket (Insulation) Material	Features	Jacket Color	Jacket (Insulation) Diameter	Qualification	Operating Temperature
Belden Inc. 8525 005100	0.017 in	Copper Tinned	1000 V	100 ft	32 AWG	7 Strands	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	Green	0.058 in	MIL-W-76C Type MW
Belden Inc. 8525 003100	0.017 in	Copper Tinned	1000 V	100 ft	32 AWG	7 Strands	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	Orange	0.058 in	MIL-W-76C Type MW
Belden Inc. 8525 0191000	0.017 in	Copper Tinned	1000 V	1000 ft	32 AWG	7 Strands	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	Brown Stripe White	0.058 in	MIL-W-76C Type MW
Belden Inc. 8525 0051000	0.017 in	Copper Tinned	1000 V	1000 ft	32 AWG	7 Strands	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	Green	0.058 in	MIL-W-76C Type MW
Belden Inc. 8525 006100	0.017 in	Copper Tinned	1000 V	100 ft	32 AWG	7 Strands	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	Blue	0.058 in	MIL-W-76C Type MW	80 °C
Belden Inc. 8525 002100	0.017 in	Copper Tinned	1000 V	100 ft	32 AWG	7 Strands	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	Red	0.058 in	MIL-W-76C Type MW
Belden Inc. 8525 0021000	0.017 in	Copper Tinned	1000 V	1000 ft	32 AWG	7 Strands	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	Red	0.058 in	MIL-W-76C Type MW
Belden Inc. 8525 007100	0.017 in	Copper Tinned	1000 V	100 ft	32 AWG	7 Strands	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	Violet	0.058 in	MIL-W-76C Type MW
Belden Inc. 8525 009100	0.017 in	Copper Tinned	1000 V	100 ft	32 AWG	7 Strands	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	White	0.058 in	MIL-W-76C Type MW
Belden Inc. 8525 010100	0.017 in	Copper Tinned	1000 V	100 ft	32 AWG	7 Strands	24 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Chemical Resistant	Black	0.058 in	MIL-W-76C Type MW	80 °C
