MX34E08NF1
ActiveJAE Electronics

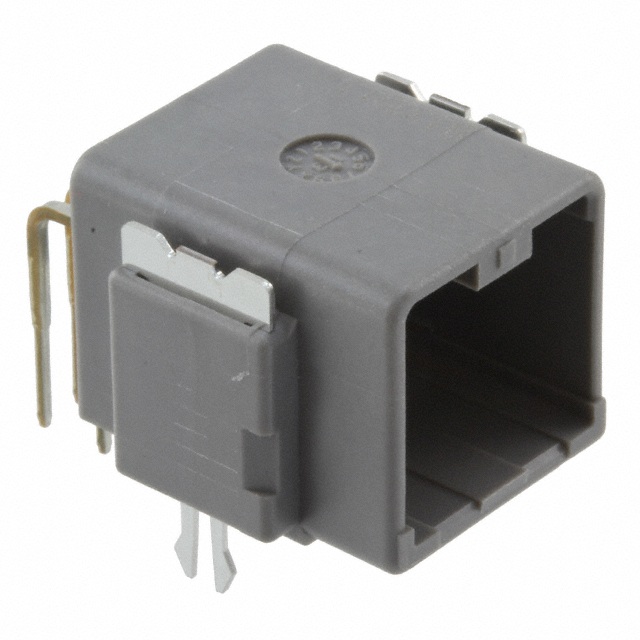

CONN HEADER R/A 8POS 2.4MM
Deep-Dive with AI
Search across all available documentation for this part.
MX34E08NF1
ActiveJAE Electronics
CONN HEADER R/A 8POS 2.4MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MX34E08NF1 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 7.7 mm |
| Contact Length - Mating | 0.303 in |
| Contact Length - Post | 3.2 mm |
| Contact Length - Post [x] | 0.126 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Locking Ramp |
| Insulation Color | Gray |
| Insulation Height | 14.2 mm |
| Insulation Height | 0.559 " |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 2.4 mm |
| Pitch - Mating | 0.094 " |
| Row Spacing - Mating | 0.138 in |
| Row Spacing - Mating | 3.5 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.60 | |
| 28 | $ 2.24 | |||
| 112 | $ 2.08 | |||
| 504 | $ 1.77 | |||
| 1008 | $ 1.51 | |||
| 5012 | $ 1.35 | |||
Description
General part information
MX34E08N Series
Connector Header Through Hole, Right Angle 8 position 0.094" (2.40mm)
