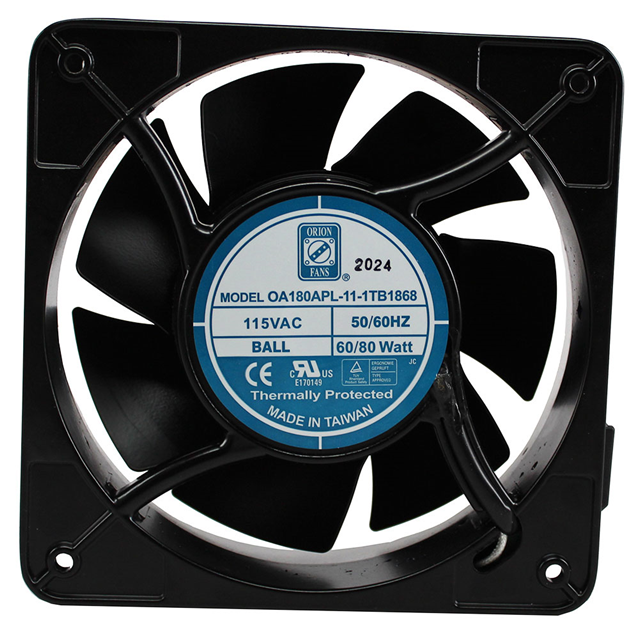

OA180APL-11-1TB1868
ActiveOrion Fans
AC AXIAL FAN, 115V, SQUARE, 180 MM, 65 MM, BALL BEARING, 400 CFM
Deep-Dive with AI
Search across all available documentation for this part.
OA180APL-11-1TB1868
ActiveOrion Fans
AC AXIAL FAN, 115V, SQUARE, 180 MM, 65 MM, BALL BEARING, 400 CFM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OA180APL-11-1TB1868 |
|---|---|
| Air Flow | 400 CFM |
| Air Flow | 11.2 mł/min |
| Approval Agency | TUV, CE, cURus, UR |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP) |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Steel |
| Material - Frame | Aluminum |
| Noise | 65 dB |
| Power (Watts) | 80 W |
| RPM | 3250 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 180 mm |
| Size / Dimension [y] | 180 mm |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Weight | 4 lbs |
| Weight | 1.8 kg |
| Width | 65 mm |
OA180AP Series
| Part | RPM | Air Flow | Air Flow | Features | Static Pressure | Static Pressure | Weight | Weight | Lifetime @ Temp. | Power (Watts) | Fan Type | Approval Agency | Ingress Protection | Material - Blade | Bearing Type | Width [y] | Material - Frame | Termination | Voltage - Rated | Noise | Size / Dimension [x] | Size / Dimension | Size / Dimension [y] | Width | Voltage Range [Max] | Voltage Range [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Orion Fans | 3250 RPM | 380 CFM | 10.64 m³/min | Thermal Overload Protector (TOP) | 189.3 Pa | 0.76 in H2O | 1.9 kg | 4.1 lbs | 50000 Hrs | 80 W | Tubeaxial | CE cURus TUV UR | IP68 - Dust Tight Waterproof | Steel | Ball | 89 mm | Aluminum | 2 Terminals | 230 VAC | 63 dB | 176 mm | Square | 176 mm | ||||||||
Orion Fans | 3250 RPM | 400 CFM | 11.2 mł/min | Thermal Overload Protector (TOP) | 1.8 kg | 4 lbs | 50000 Hrs | 80 W | Tubeaxial | CE cURus TUV UR | IP68 - Dust Tight Waterproof | Steel | Ball | Aluminum | 2 Wire Leads | 230 VAC | 65 dB | 180 mm | Square | 180 mm | 65 mm | ||||||||||
Orion Fans | 3250 RPM | 380 CFM | 10.64 m³/min | Thermal Overload Protector (TOP) | 189.3 Pa | 0.76 in H2O | 1.9 kg | 4.1 lbs | 50000 Hrs | 80 W | Tubeaxial | CE cURus TUV UR | IP68 - Dust Tight Waterproof | Steel | Ball | 89 mm | Aluminum | 2 Wire Leads | 230 VAC | 63 dB | 176 mm | Square | 176 mm | ||||||||
Orion Fans | 3175 RPM | 409 CFM | 11.45 mł/min | Thermal Overload Protector (TOP) | 209.2 Pa | 0.84 in H2O | 1.8 kg | 4 lbs | 60000 Hrs | 70 W | Tubeaxial | CE cURus TUV UR | Polybutylene Terephthalate (PBT) | Ball | 89 mm | Aluminum | 2 Wire Leads | 115 VAC | 62 dB(A) | 180 mm | Square | 180 mm | 120 VAC | 100 VAC | -20 °C | 70 °C | -20 C | 70 °C | |||
Orion Fans | 3250 RPM | 380 CFM | 10.64 m³/min | Thermal Overload Protector (TOP) | 189.3 Pa | 0.76 in H2O | 1.9 kg | 4.1 lbs | 50000 Hrs | 80 W | Tubeaxial | CE cURus TUV UR | IP69K | Steel | Ball | 89 mm | Aluminum | 2 Terminals | 230 VAC | 63 dB | 176 mm | Square | 176 mm | ||||||||
Orion Fans | 3250 RPM | 400 CFM | 11.2 mł/min | Thermal Overload Protector (TOP) | 1.8 kg | 4 lbs | 50000 Hrs | 80 W | Tubeaxial | CE cURus TUV UR | IP68 - Dust Tight Waterproof | Steel | Ball | Aluminum | 2 Wire Leads | 115 VAC | 65 dB | 180 mm | Square | 180 mm | 65 mm | ||||||||||
Orion Fans | 3300 RPM | 405 CFM | 11.34 m³/min | Thermal Overload Protector (TOP) | 206.7 Pa | 0.83 in H2O | 1.8 kg | 4 lbs | 60000 Hrs | 70 W | Tubeaxial | cURus TUV | Polybutylene Terephthalate (PBT) | Ball | Aluminum | 2 Terminals | 115 VAC | 60 dB(A) | 180 mm | Square | 180 mm | 65 mm | 130 VAC | 60 VAC | -20 °C | -20 C | 80 C | 80 °C | |||
Orion Fans | 3175 RPM | 409 CFM | 11.45 mł/min | Thermal Overload Protector (TOP) | 209.2 Pa | 0.84 in H2O | 1.8 kg | 4 lbs | 60000 Hrs | 70 W | Tubeaxial | CE cURus TUV UR | Polybutylene Terephthalate (PBT) | Ball | 89 mm | Aluminum | 2 Terminals | 115 VAC | 62 dB(A) | 180 mm | Square | 180 mm | 120 VAC | 100 VAC | -20 °C | 70 °C | -20 C | 70 °C | |||
Orion Fans | 3250 RPM | 400 CFM | 11.2 mł/min | Thermal Overload Protector (TOP) | 1.8 kg | 4 lbs | 50000 Hrs | 80 W | Tubeaxial | CE cURus TUV UR | IP68 - Dust Tight Waterproof | Steel | Ball | Aluminum | 2 Terminals | 115 VAC | 65 dB | 180 mm | Square | 180 mm | 65 mm | ||||||||||
Orion Fans | 3250 RPM | 400 CFM | 11.2 mł/min | Thermal Overload Protector (TOP) | 1.8 kg | 4 lbs | 50000 Hrs | 80 W | Tubeaxial | CE cURus TUV UR | IP68 - Dust Tight Waterproof | Steel | Ball | Aluminum | 2 Terminals | 230 VAC | 65 dB | 180 mm | Square | 180 mm | 65 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
OA180AP Series
Fan Tubeaxial 115VAC Square - 180mm L x 180mm H Ball 400.0 CFM (11.20m³/min) 2 Terminals
