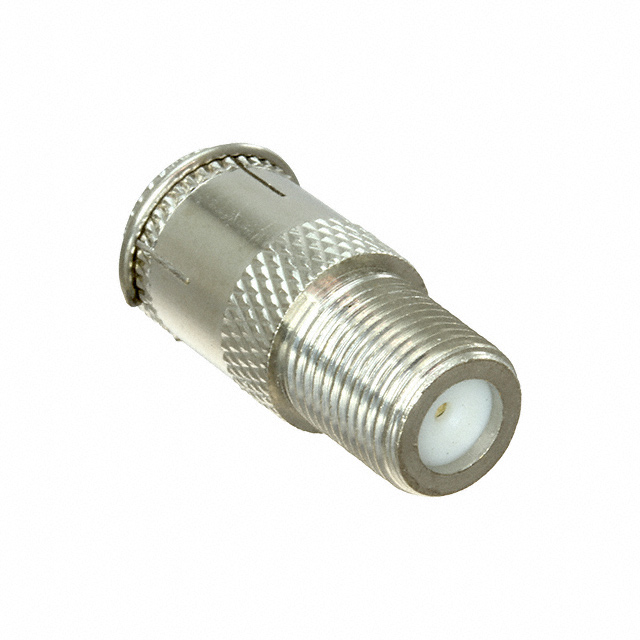

Specification	BU-P6713

Adapter Series	F to F
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Nickel
Center Gender	Male, Female
Conversion Type	Same Series
Convert From (Adapter End)	F Plug, Male Pin
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Type	F Jack
Fastening Type	Threaded, Snap-On
Frequency - Max	500 MHz
Impedance	75 Ohm
Mounting Type	Free Hanging (In-Line)
Style	Straight

BU-P67 Series

Part	Dielectric Material	Body Finish	Body Material	Center Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Convert To (Adapter End) Count	Convert To (Adapter End)	Center Contact Plating	Style	Convert From (Adapter End)	Mounting Type	Fastening Type	Adapter Type	Center Gender	Impedance	Adapter Series	Conversion Type	Frequency - Max	Convert To (Adapter End) Type	Convert To (Adapter End) Gender
Mueller Electric Co BU-P6738	Polytetrafluoroethylene (PTFE)	Nickel	Brass	Beryllium Copper	-50 °C	150 °C	2 count	BNC Jack Female Socket	Gold	T-Shape	BNC Jack Female Socket	Free Hanging (In-Line)	Bayonet Lock	Jack to Jack	Female	75 Ohm	BNC to BNC Dual	Same Series
Mueller Electric Co BU-P6713		Nickel	Brass	Brass					Nickel	Straight	F Plug Male Pin	Free Hanging (In-Line)	Snap-On Threaded	Plug to Jack	Female Male	75 Ohm	F to F	Same Series	500 MHz	F Jack	Female Socket
