BBD-123-G-B

Active

Samtec Inc.

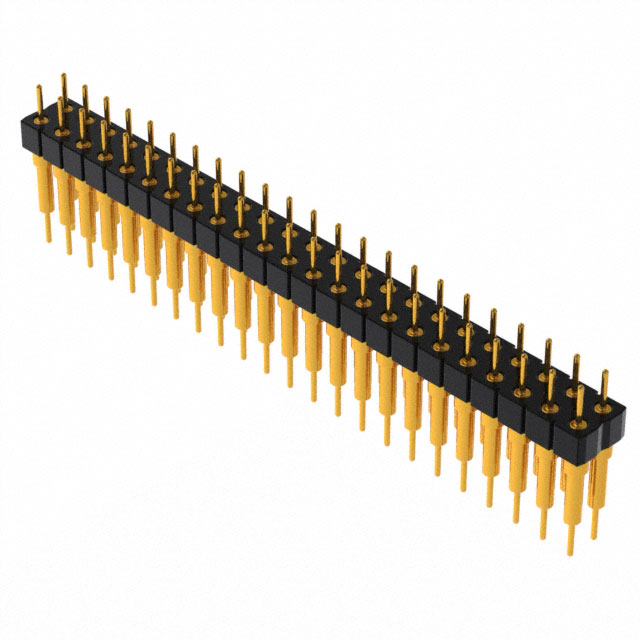

CONN HEADER VERT 46POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 46POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	BBD-123-G-B

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole
Number of Positions	46
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	14.86 mm
Overall Contact Length	0.585 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Part	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Mounting Type	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Contact Shape	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Positions Loaded	Contact Finish - Post	Contact Type	Contact Finish - Mating
Samtec Inc. BBD-123-G-B	0.335 "	8.51 mm	1.27 µm	50 µin	Solder	Black	0.125 in	3.18 mm	0.51 µm	20 µin	Header	0.1 in	2.54 mm	14.86 mm	0.585 in	Through Hole	2	3.18 mm	0.125 in	Push-Pull	2.54 mm	0.1 in	Unshrouded	Circular	Polyester Glass Filled	-55 °C	125 °C	46	All	Nickel	Male Pin	Gold
Samtec Inc. BBD-123-T-B	0.335 "	8.51 mm	1.27 µm	50 µin	Solder	Black	0.125 in	3.18 mm			Header	0.1 in	2.54 mm	14.86 mm	0.585 in	Through Hole	2	3.18 mm	0.125 in	Push-Pull	2.54 mm	0.1 in	Unshrouded	Circular	Polyester Glass Filled	-55 °C	125 °C	46	All	Nickel	Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	9	$ 22.53

General part information

Connector Header Through Hole 46 position 0.100" (2.54mm)
