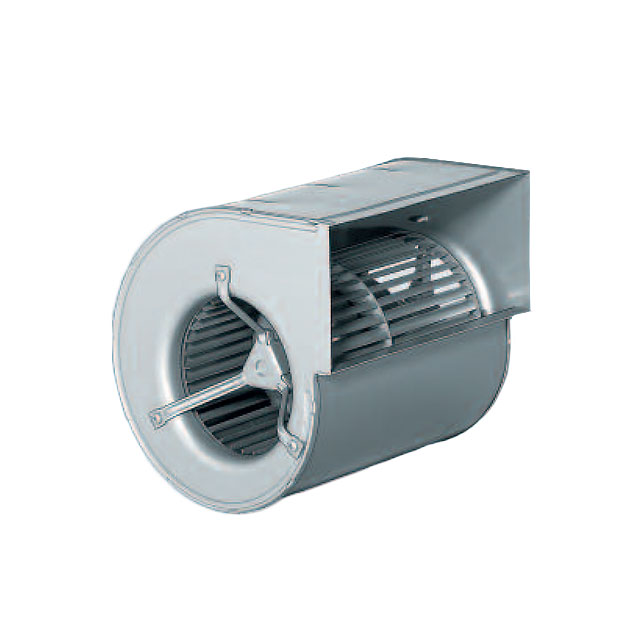

Specification	D1G133-AB39-52

Approval Agency	EAC, CSA, CCC, UL
Bearing Type	Ball
Current Rating	2.8 A
Fan Type	Blower, Centrifugal
Features	PWM Control, Locked Rotor Protection, Speed Sensor (Tach)
Ingress Protection	IP42
Material - Blade	Steel
Material - Frame	Steel
Noise	64 dB
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-25 °C
Power (Watts)	105 W
RPM	1780 RPM
Size / Dimension Height	180 mm
Size / Dimension Length	171 mm
Size / Dimension Shape	Rectangular/Rounded
Termination	4 Wire Leads
Termination Leads Count	4 leads
Termination Type	Wire Leads
Voltage - Rated	48 VDC
Voltage Range (Max)	57 VDC
Voltage Range (Min)	36 VDC
Width	215 mm

D1G133 Series

Part	Material - Frame	Current Rating	Voltage Range (Min)	Voltage Range (Max)	Material - Blade	Fan Type	Bearing Type	Ingress Protection	Operating Temperature (Min)	Operating Temperature (Max)	Features	Noise	Approval Agency	Termination Leads Count	Termination Type	Termination	Voltage - Rated	Size / Dimension Shape	Size / Dimension Length	Size / Dimension Height	Width	RPM	Power (Watts)
ebm-papst Inc. D1G133-AB39-52	Steel	2.8 A	36 VDC	57 VDC	Steel	Blower Centrifugal	Ball	IP42	-25 °C	60 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	64 dB	CCC CSA EAC UL	4 leads	Wire Leads	4 Wire Leads	48 VDC	Rectangular/Rounded	171 mm	180 mm	215 mm	1780 RPM	105 W
ebm-papst Inc. D1G133-DC17-52	Steel	3 A	36 VDC	57 VDC	Steel	Blower Centrifugal	Ball	IP42	-25 °C	60 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	64 dB	CSA EAC UL	4 leads	Wire Leads	4 Wire Leads	48 VDC	Rectangular/Rounded	203 mm	213 mm	232 mm	1580 RPM	118 W
